AI Based Visual Inspection System For Glass Bottles Good Quality Made In China

Inspection principle

in our daily life. Glass bottled beverages, water cups and other liquid objects. More inclined to make a glass bottle. Glass bottles have many advantages. Qi materials have good barrier properties, good corrosion resistance, and can be recycled many times, which is conducive to reducing packaging costs. But at the same time, the glass bottle also has certain deficiencies, it is more easily damaged and broken. Therefore, in the automatic production line, in order to better ensure the quality of the goods, the glass bottles will be tested in an all-round way.

Using visual inspection technology to carry out all-round inspection of each position of the bottle body, it can detect high and short bottles, special-shaped bottles, inverted bottles, half bottles, residual liquid, damage to the upper edge of the bottle mouth, damage to the outer edge of the bottle mouth, damage to the lower edge of the bottle mouth, side All kinds of defects such as wall stains burst, bottle bottom stains and foreign objects, bottle bottom transparent film, bottle bottom damage and other defects are eliminated online.

Inspection details

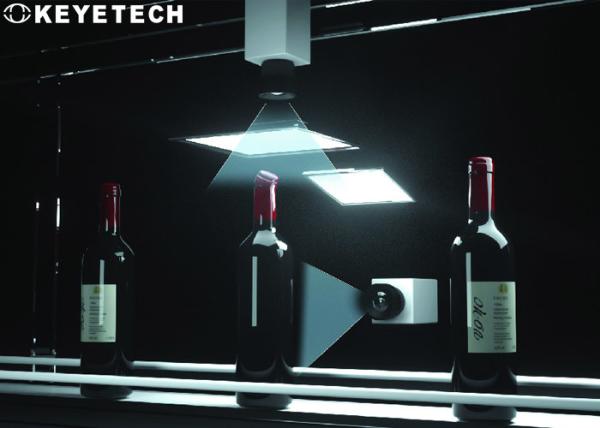

The key to the glass bottle inspection machine depends on the machine vision technology, which uses the combination of light source, lens, camera and software algorithm to achieve accurate inspection of glass bottles. For different bottle types, an appropriate light source combination must be selected, which will help maximize the visual contrast of defective foreign objects and improve the detection accuracy and accuracy. Then use industrial cameras to collect pictures, and use visual algorithms to process and classify the collected picture data.

• Shape detection (high and short bottles, broken bottles, special-shaped bottles, different-color bottles, inverted bottles, half-cut bottles)
• Bottle mouth detection (damage of the sealing surface of the mouth, damage to the mouth plane, damage to the lower edge of the mouth)
• Bottle body inspection (bottle body stains, cracks, wear)
• Bottle bottom detection (bottom stains, foreign objects, damage, transparent film foreign objects)
• Residual liquid (residual water, residual lye)

Detection details

After-sale service

The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.

After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
