General condition of equipment :

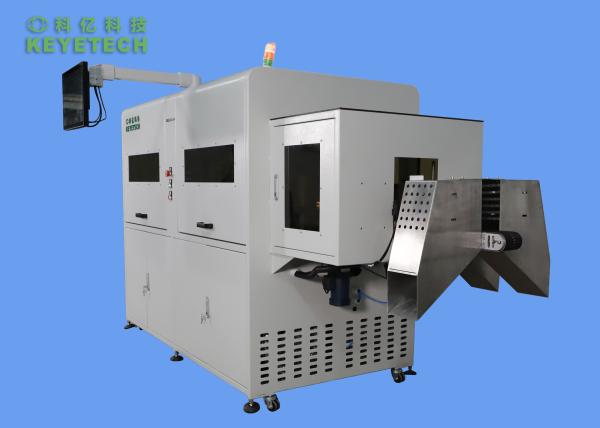

The bottle inspection system includes mechanical conveying, AI vision hardware equipment and high-performance GPU processing platform. The entrance and exit of the inspection equipment can be integrated with the on-site conveyor line to realize the defect detection of the bottle, and the detection of unqualified products can be realized automatically. To exclude, both parties need to pre-determine the connection height of the equipment and the layout of the workshop site, and use the attached description as the basis for the implementation of both parties.

During the detection process, the critical fluctuation state of certain detection item data may affect the judgment, which will lead to a certain probability of product misdetection. According to the actual situation, the system software parameter settings can be adjusted to achieve actual results.

Equipment Overviews

Black spots, stains, hair, impurities (different colors) will be analyzed and processed according to the black spot detection index. The gray value contrast difference value of this item is more than 40, which can be effectively detected. If the sample has transparent oil stains or light black spots, and the gray value contrast difference value is less than 40, the detection effect cannot be achieved.

If the product structure features are more complex, in actual inspection applications, there will be a certain area of ​​detection blind zone (such as the area under the thread and the ring, etc.) in the overlapping area of ​​the planar lens imaging structure, and the image collection may not be able to detect effectively .

Detection performance :

The counting function can be realized, and the counting accuracy rate is 99.9%.

The equipment needs to be regularly maintained and cleaned.(such as conveyor belt cleaning, camera cleaning, etc.).

It is necessary to provide each defective product or defective product image contained in the above-mentioned test content, we will meet the test standard according to the actual sample.
