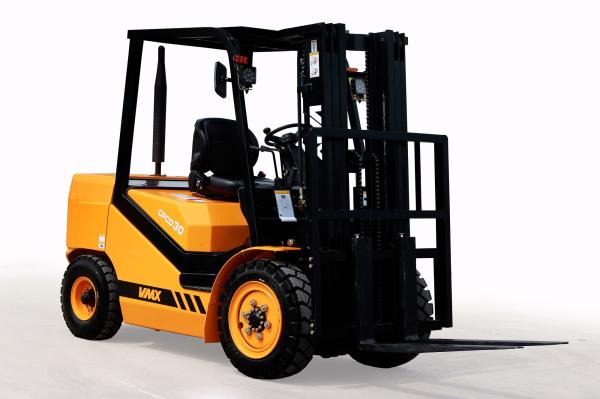

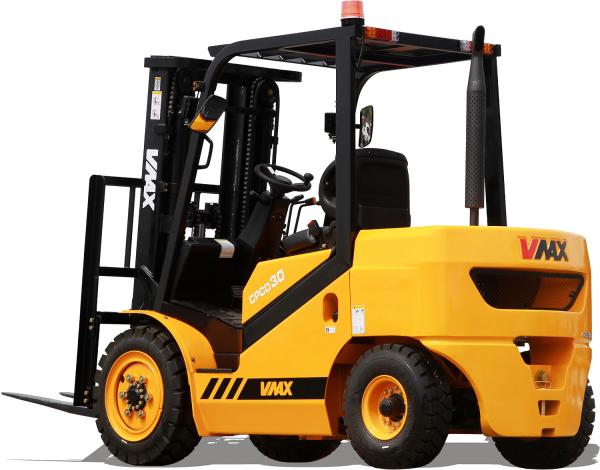

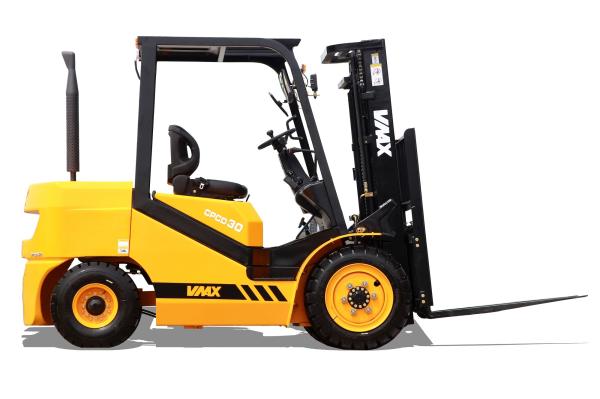

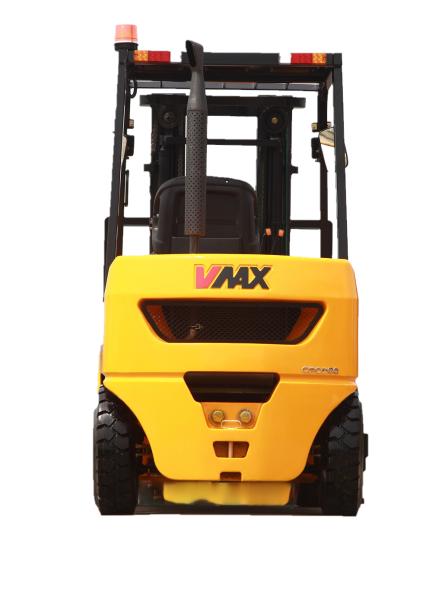

Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Specifications
Brand Name :
Vmax
Model Number :
CPCD30
Certification :
ISO CE, SGS, BV
Place of Origin :
ANHUI,CHINA
MOQ :
1UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000unit / year
Delivery Time :
45 DAYS
Packaging Details :
bubble wrap
product name :
diesel forklift truck
Condition :
new
Type :
Manual Pallet Truck
Power Souce :
Diesel Engine
Rated Loading Capacity :
3000kg
Max. Lifting Height :
6000mm
Min. Lifting Height :
3000mm
Fork Length :
1070mm
color :
yellow or custom made
Weight :
4700kg
Description

Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length

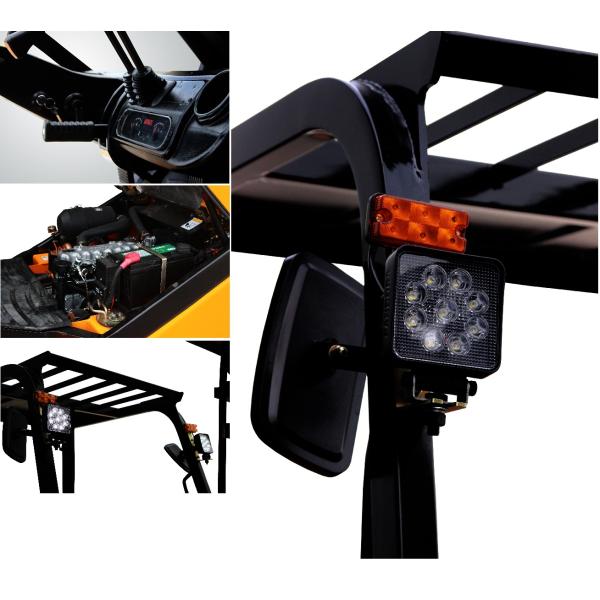

counterbalance fork truck Characteristics:

  • Integrated central control box the reliability of electric system
  • Ergonomical design ensures best operation
  • Energy-saving hydraulic system decreases fuel consumption
  • High quality hydraulic hoses, no oil leakage
  • Wide view mast design improves the productivity and safety
  • Diesel forklift truck

3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model Unit CPC30/CPCD30
Power type Diesel
Rated capacity kg 3000
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 175
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 485
Exterior Size Length without fork mm 2680
Overall width mm 1225
Mast drop mm 2065
Max.lift mm 4250
Front-wheel Overhead mm 2070
Min Turning Radius mm 2420
Min.intersecting aisle mm 2100
Speeds Max Driving speeds km/h 18.5/20
Lifting speeds mm/s 470/520
Lowering speeds mm/s 550/520
Max.grade ability % 20
Total weight kg 4300
Tires Front 28*9-15-12PR
Rear 6.5-10-10PR
Wheelbase mm 1700
Tread Front mm 1000
Rear mm 970
Min.ground clearance mm 110
Engine Model 490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/1800
No.of cylinder 4
Displacement L 2.54
Fuel tank capacity L 52
