2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
Specifications
Brand Name :
VMAX
Model Number :
CPD25
Certification :
CE SGS BV ISO
Place of Origin :
China
MOQ :
1unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000unit
Delivery Time :
25days
Packaging Details :
nude packing
Power :
Battery
Colour :
customizable
Tire :
customizable
Seat :
Toyota type
Description

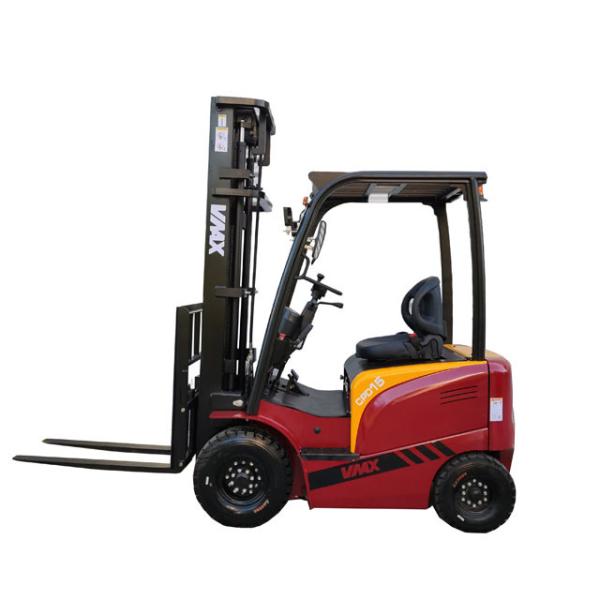

2.5 ton 48V full AC motor 3 stage 4.5m full free mast mini electric forklift truck with Curtis Controller

Brand
VMAX
Model
CPD25
Operation type
Drive in seat
Load capacity
kg
2500
Load center
mm
500
Power type
Electric
Number of wheels X=driving wheel(front/behind)
2X/2
Tire size (front/behind)
7.00-12-12PR/18*7-8PR
Service brake
Hydraumatic pedal
Parking service
Mechanical manual
Mast tilt,Forward/backward
α/β(°)
6/12
Mast height after mast fall
mm
1995
Fork lift max height
mm
4025
Free lift height
mm
150
Standard Mast height
mm
3000
Overhead guard height
mm
2098
Overall length
mm
2353
Fork overhang
mm
468.5
From the rear
mm
384
Wheelbase
mm
1500
Minimum distance between the ground
mm
110
Tread (front/behind)
mm
970/950
Vehicle width
mm
1170
Fork size
mm
'1070x122x45
Channel width,
mm
4040
Turning radius
mm
2172
Walking speed,loaded/withoutload
km/h
'12/14
lifting speed,loaded/load
m/s
320450
Dropping speed loaded/without load
m/s
476/426
Maximum traction,loaded
N
18000
Max grade ability,loaded/without load
%
13/15
Drive motor power
kw
11
Lifting motor power
kw
12
Level voltage/Capacitance
V/Ah
'48/630
Drive System
DC/AC
Electrical control system
Curtis from America
CPD25 2.5 ton 48V full AC motor 3 stage 4.5m full free mast mini electric forklift truck with Curtis Controller
2.5ton electric forklift

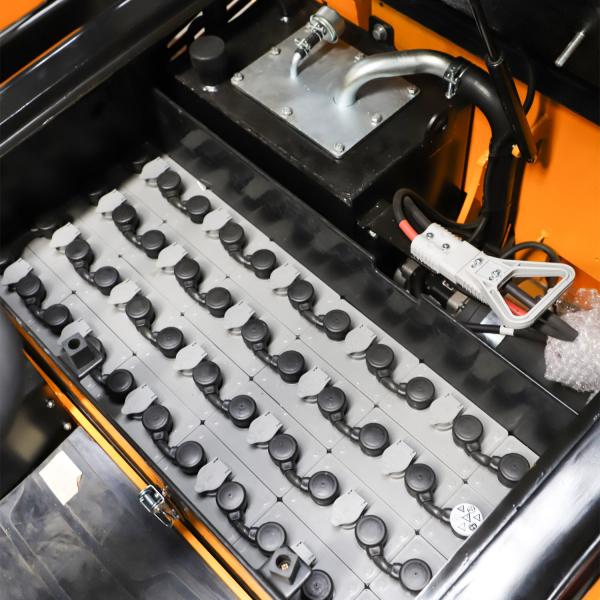

1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
2.5T 48V AC Motor 3 Stage 4.5m Electric Warehouse Forklift
