48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
Specifications
Brand Name :
VMAX
Model Number :
CPD15
Certification :
CE,SGS，BV
Place of Origin :
Anhui
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000unit
Delivery Time :
25days
Packaging Details :
Packed the forklift with plastic foam, all wheels fixed with wooden corner block, tightened with frap rope,etc..
Color :
red,yellow
Power :
Battery
Battery Capacity :
48V/400Ah
Motor :
AC/DC
Warranty :
1year
Description
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Logistic/warehouse lifting
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
France, Philippines, Indonesia, Thailand, Australia, Morocco, Argentina, Colombia, Algeria, Kyrgyzstan
Showroom Location:
Viet Nam, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, Argentina, South Korea, Bangladesh, Nigeria, Australia, Morocco
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
VMAX
Power Souce:
AC Motor
Min. Lifting Height:
3000mm
Fork Length:
1070mm
Fork Width:
125mm
Overall Dimensions:
2035x1090x2100mm
Certification:
CE, ISO, BV, SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Type:
Powered Pallet Truck
Model:
CPD15
Battery Capacity:
48V/400Ah
Motor:
AC/DC
Controller:
Curtis AC Controller
Mast:
2 stage 3m full free
Tire:
Pneumatic
Color:
Red, white, yellow, etc..
Attachment:
side shifter
Product Certification
CE Certified.
Valid from 2017-04-21 until 2022-04-20
Supply Ability
Supply Ability:
6000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Nude stable packing, with plastic foam, wooden corner blocks, etc..
Port
NANJING OR SHANGHAI PORT
Picture Example:
48V 400Ah Battery Powered 3.5t Hydraulic Pallet Stacker
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 35 To be negotiated

Product Application

1.5ton electric forklift

1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.

2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.

3) Transmission: Automatic/manual;

4) Tire: pneumatic/Solid/non-mark solid;

5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;

6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc..

7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..

Driving specifications
Battery voltage/capacity
v/ah
48V/400Ah
Dirve motor
kw
8
Lift motor
kw
11
Main performance parameters
Max drive speed(with/without load)
km/h
13/15
Lifting speed( with/without load)
mm/h
240/450
Max. Gradeability
%
12/15
Lifting mast height
Max. lifting height of forks(standard)
mm
3000-6000
Max.lift height of mast with load-backrest(standard)
KN
4025-7025
Height of mast(standard)
KN
1995
Size
Free lift height(standard)
mm
140
Distance from seat to overhead guard
mm
1240
Overhead guard
mm
2100
Overall length without fork
mm
2035
Overall width
mm
1090
Front overhang
mm
468.5
Rear Overhang
mm
384
Wheel base
mm
1360
Height of traction pin
mm
310
Min. ground clearance
mm
110
Distance between forks
mm
240-1020
Tread (front/rear)
mm
912/920
Min. turning radius (outside/inside)
mm
1995
Min. intersecting aisle
mm
2250
Mast tilt angle
.
6/12
Fork size
mm
1070x122x45
Weight
Total weight
kg
3120
Weight of distribution full load(front/rear)
kg
4158/462
Weight distribution zero load(front/rear)
kg
1248/1872
Tires
Quantity of wheels
2x2
Type of tyres
Pneumatic tires
Front
6.50-10-12PR
Rear
5.00-8-8PR

Machine Parts

Name: lead acid battery

Brand: TORCH

Original: CHINA SHANGDONG

1500 times full charging, low maintenance, short time charing, etc..

Main Parts

Name: Transmission
Brand: Zhongchuan
Original: China

China top prefessional transmission, precise gear and long life usage.

Machine Parts

Name: operation type
easy operating steering wheel, fast electronic shift, convenient handle, micro brake & foot brake with hydraulic pedal, etc..

Main Features

Name: wide view mast
Brand: VMAX
Original: China
Strong U-steel, lifting cylinder, chain, bearing, etc..

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Professional spare parts in stock

* Top brand spare parts supplied.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

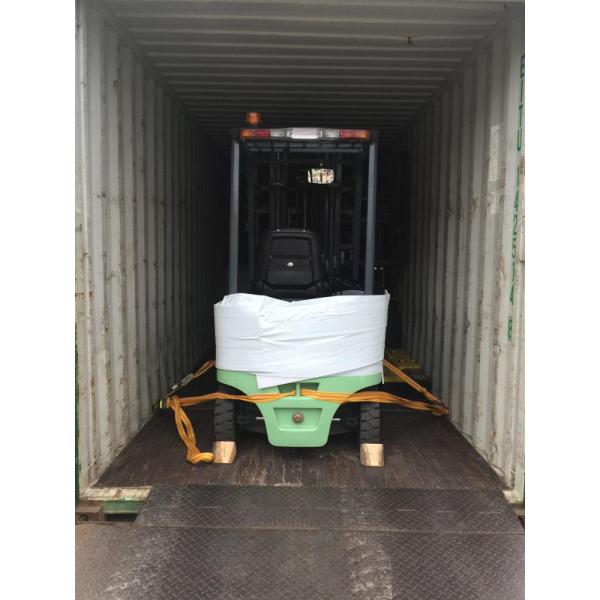

Packing & Delivery
Packaging
Size
L:2353mm,W:1200mm, H: 2090mm
Weight
4.3ton
Packaging Details
Packed the forklift with plastic foam, all wheels fixed with wooden corner block, tightened with frap rope,etc..
Loading
Container
20GP
Pcs
4pcs
Container
40HQ
Pcs
6pcs
Packaging Details
Professional delivering member, factory loading platform, packing stable, etc..
