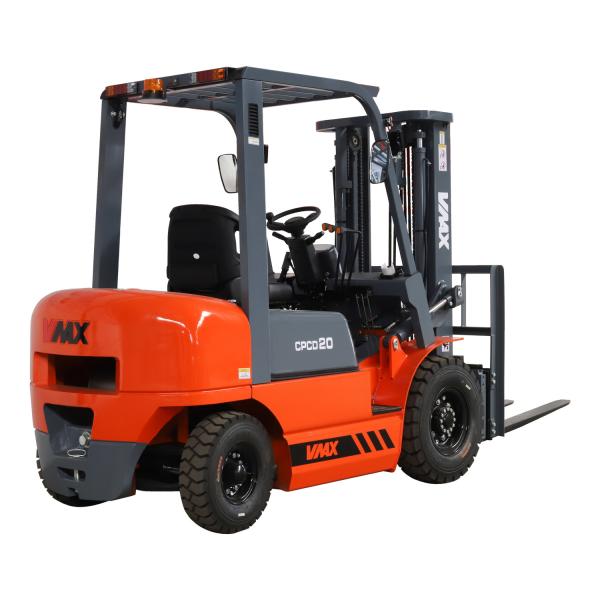

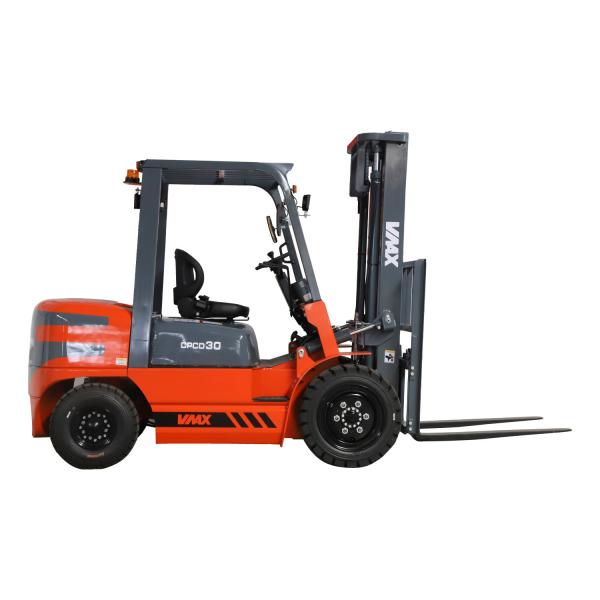

2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
Vmax
Model Number :
CPCD20
Certification :
ISO,CE,SGS
Price :
1 Set/Sets (Min. Order)
MOQ :
1 Set/Sets
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
5000unit
Delivery Time :
25days
Condition :
New
Type :
Powered Pallet Truck
Power Souce :
Diesel Engine
Rated Loading Capacity :
2000KG
Max. Lifting Height :
6000mm
Min. Lifting Height :
3000mm
Fork Length :
1070mm
Fork Width :
125mm
Overall Dimensions :
2682*1225*2090mm
After-sales Service Provided :
Overseas third-party support available
color :
nacarat
load center :
500mm
engine :
C490BPG
Description

2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic

3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION
Model Unit CPC30/CPCD30
Power type Diesel
Rated capacity kg 2000
Load center mm 500
Mast Lifting height mm 3000
Free lift height mm 175
Fork size(L*W*T) mm 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12°
Front overhang mm 485

Exterior Size		 Length without fork mm 2680
Overall width mm 1225
Mast drop mm 2065
Max.lift mm 4250
Front-wheel Overhead mm 2070
Min Turning Radius mm 2420
Min.intersecting aisle mm 2100

Speeds		 Max Driving speeds km/h 18.5/20
Lifting speeds mm/s 470/520
Lowering speeds mm/s 550/520
Max.grade ability % 20
Total weight kg 4300

Tires		 Front 28*9-15-12PR
Rear 6.5-10-10PR
Wheelbase mm 1700

Tread		 Front mm 1000
Rear mm 970
Min.ground clearance mm 110

Engine		 Model XINCHANG490BPG
Rated output kw/rpm 37/2650
Rated torque N.m/rpm 148/1800
No.of cylinder 4
Displacement L 2.54
Fuel tank capacity L 52

2Ton hydraulic diesel forklift truck with 4m full free mast China exported forklift suppliers CPCD30 automatic hydraulic
