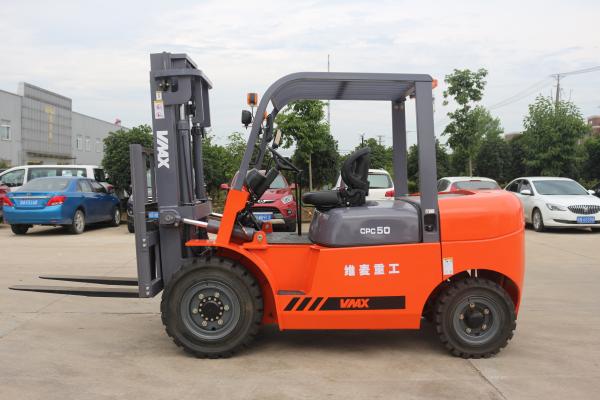

Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm
Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm
Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm
Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm
Specifications
Brand Name :
VMAX
Model Number :
CPC45
Certification :
CE, BV,SGS,ISO9001
Place of Origin :
CN
MOQ :
1 unit
Price :
＄13,870.00-＄18,500.00/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000 units/year
Delivery Time :
25-30 days
Packaging Details :
nude package
Condition :
new
Power souce :
diesel engine
Fork length :
1070mm
Fork width :
150mm
Transmission :
manual
Overall dimensions :
3105*2290*1480mm
Max. lifting height :
6000mm
Color :
optional
Warranty :
1 year or 2000 hours
Engine :
Mitsubishi, Xinchang, Dachai, Yanmar etc
Load center :
500mm
Loading capacity :
4500kgs
Description

manual operation Japanese engine 4.5 ton diesel forklift with CE ISO90001 certificate​:

SPECIFICATIONS of VMAX diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1 Manufacturer
2 Model Unit CPC45
3 Power type DIESEL
4 Rated capacity kg 4500
5 Load center mm 500
6 Operator type
Size
7 Max. lift height of mast with Load-backrest mm 4280
8 Max.lift height of fork mm 3000
9 Height of mast mm 2330
10 Free lift height(with backrest) mm 150
11 Height of Load-backrest mm 1195
12 Distance from seat to overhead guard mm 1000
13 overhead guard height mm 2290
14 Length without fork mm 3105
15 Front overhang mm 565
16 Rear overhang mm 540
17 Wheel base mm 2000
18 The height of traction pin mm 350
19 Min. ground clearance mm 160
20 Overall width mm 1480
21 The distance between forks mm 1370/300
22 Tread(front /rear) mm 1180/1190
23 Min. Turning radius(outside) mm 2780
24 Min. Turning radius(inside) mm 270
25 Min. Intersecting aisle mm 3365
26 Mast tilt angle deg
27 Fork size mm 1070*150*50
Performance
28
Speeds		 Max.Drive speeds(with/without full load) km/h 18/19
29 Lifting speeds (with /without full load) mm/s 400/450
30 Lowering speeds(with /without full load) mm/s 350/400
31 Max. tractive force(with /without full load) KN 20/19
32 Max.grade ability (with/without full load) % 18/20
Weight
33 Total weight kg 6400
34 Weight Distribution full load (front/ rear) kg 9540/1360
35 Weight Distribution zero load(front / rear) kg 2630/3770
Wheels and Tyres
36 Quantity of wheels
37 Type of tyres
38 Tires Front 300-15-18PR
39 Rear 7.00-12-12PR
40 Driving Brake
41 Parking Brake
Control device for driving and transmitting
42 Battery V/AH (12/80)*2
43 Engine (standard) Model XINCHANG 4D35G
44 Rated output kw/rpm 48/2200
45 Rated torque N.m/rpm 230/1600-1800
46 No.of cylinder 4-98X105
47 Displacement L 3.46
48 Fuel tank capacity L 80
49 Number of speeds for transmission

Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm

Manual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mmManual Operation Diesel Engine Forklift 4500kgs Loading Capacity 3105 * 2290 * 1480mm
