Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm
Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm
Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm
Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm
Specifications
Brand Name :
VMAX
Model Number :
CPCD25
Certification :
CE, BV,SGS,ISO9001
Place of Origin :
CN
MOQ :
1 unit
Price :
＄6,650.00-＄10,000.00/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000 units/year
Delivery Time :
25-30 days
Packaging Details :
nude package
Condition :
new
Power souce :
diesel engine
Fork length :
1070mm
Fork width :
100mm
Transmission :
automatic
Overall dimensions :
2576*2070*1170mm
Min. lifting height :
3000mm
Max. lifting height :
6000mm
Color :
optional
Warranty :
1 year or 2000 hours
Engine :
Mitsubishi S4S, Xinchang A498, Xinchang C490, Xinchang A490, Isuzu C240
Load center :
500mm
Loading capacity :
2500kgs
Description

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

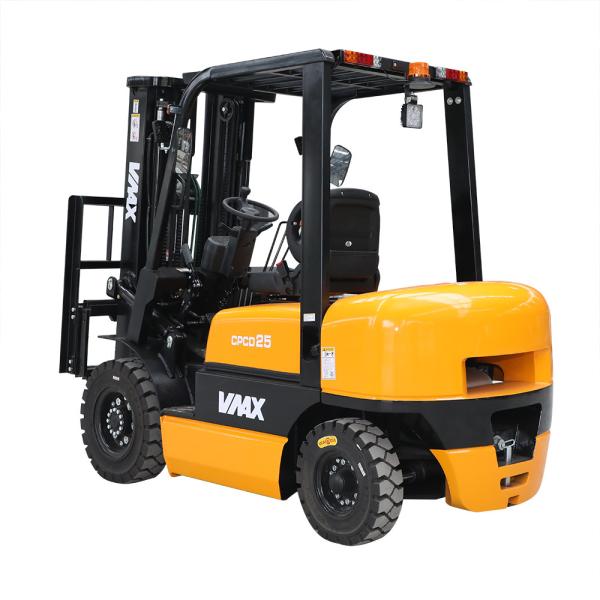

Pls refer to the details and real photos of CPCD25 as below:

Specifications
1 Manufacturer
2 Model Unit CPCD25
3 Power type DIESEL
4 Rated capacity kg 2500
5 Load center mm 500
6 Operator type
Size
7 Max. lift height of mast with Load-backrest mm 4030
8 Max.lift height of fork mm 3000
9 Height of mast mm 2000
10 Free lift height(with backrest) mm 170
11 Height of Load-backrest mm 1010
12 Distance from seat to overhead guard mm
13 overhead guard height mm 2070
14 Length without fork mm 2576
15 Front overhang mm 477
16 Rear overhang mm 494
17 Wheel base mm 1600
18 The height of traction pin mm 290
19 Min. ground clearance mm 110
20 Overall width mm 1170
21 The distance between forks mm 1024/200
22 Tread(front /rear) mm 970/970
23 Min. Turning radius(outside) mm 2240
24 Min. Turning radius(inside) mm 160
25 Min. Intersecting aisle mm 2280
26 Mast tilt angle deg
27 Fork size mm 1070*100*45
Performance
28
Speeds		 Max.Drive speeds(with/without full load) km/h 17/19
29 Lifting speeds (with /without full load) mm/s 530/550
30 Lowering speeds(with /without full load) mm/s 450/550
31 Max. tractive force(with /without full load) KN 20/15.2,21/15.2
32 Max.grade ability (with/without full load) % 18/20,23/20
Weight
33 Total weight kg 3680
34 Weight Distribution full load (front/ rear) kg 5562/618
35 Weight Distribution zero load(front / rear) kg 1420/2208
Wheels and Tyres
36 Quantity of wheels
37 Type of tyres
38 Tires Front 7.00-12-12PR
39 Rear 6.00-9-10PR
40 Driving Brake
41 Parking Brake

Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.

Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.

Q: Are you trading company or manufacturer ?

A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.

Q: Do you provide samples ?

A: Yes, VMAX accept the sample order.

Q: What is your terms of payment ?

A: T/T and L/C is accepted.

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mmWarehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mmWarehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm


Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm

Warehouse Diesel Powered Forklift Load Capacity 2.5 Ton Max Lifting Height 6000mm
