Specifications
Type :
LED
Panel Size :
128*256, 128*256
Brand Name :
Glare-LED
Application :
Outdoor, Eunnel, Highway Roadxpressway
use :
Highway Roadxpressway, Eunnel
Media Available :
datasheet, Photo
Color :
Single color/Dual-color/Full color
Model Number :
GLG-TDL-200F
Place of Origin :
Guangdong, China
Pixels :
Other, Other
Chip Color :
Amber, Tri-Color, Full Color or Custom
Waterproof level :
IP65
Pixel pitch :
20mm
Pixel composition :
1R1G1B
average power consumption :
250
Pixel density :
3906 dot / m2
Brightness :
12000
Viewing Distance :
250-300m
Refresh Rate :
>120Hz
Life Span :
100, 000 Hours
Supplier Type :
Original manufacturer
Specification :
8*16
HS Code :
8531909000
Resolution :
16*16
Price :
Negotiable
Description
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen

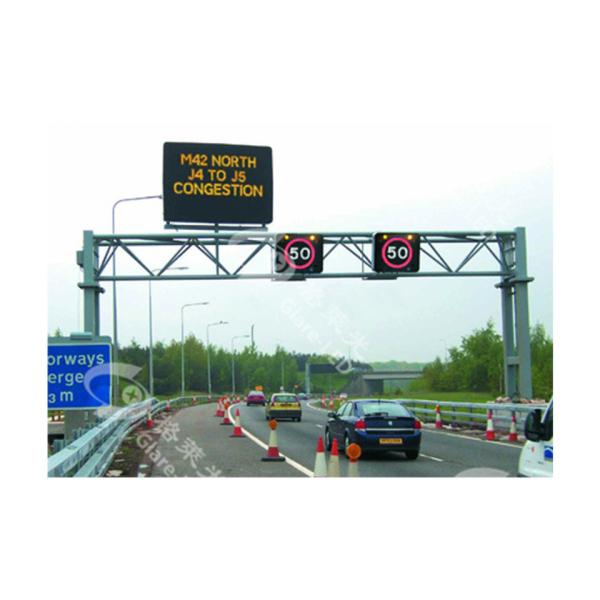

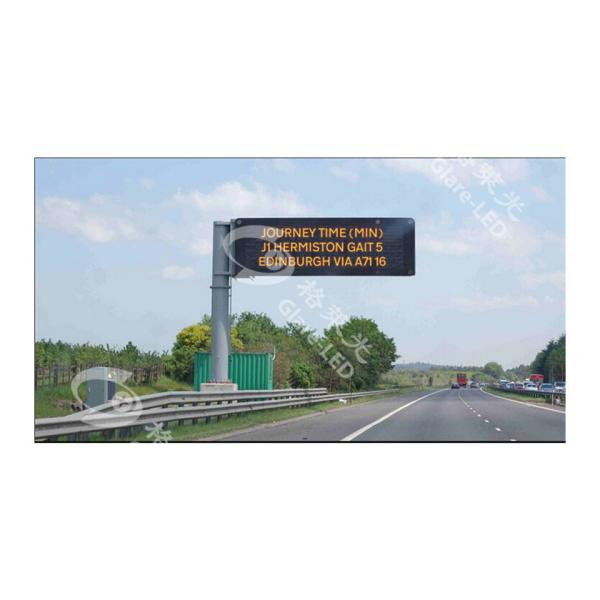

Glare-LED variable message signs and traffic guidanceequipment traffic information dissemination, which is based on LED lighting device shows the effect of the basic traffic information display unit of a display device with graphics and text. According to the instruction information traffic, weather and dispatching department, the operator can be released to the variable information boards of various notices and information to effectively induct traffic flow, improve transport capacity of the road network, the safety of the driver driving fast provide excellent service.
-- ≥30° LED Modules --
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Product Features
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen

• Display module having the versatility and interchangeability can be composed of different display colors and different sizesaccording to needs.
• Double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
• Pixel module junction box and use the "O"ring, with good moisture anti-leakage performance.
• Module package uses advanced soft silicone, the elastic, strong anti-aging ability.
• Power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the
performance is unstable due to mechanical failure when the cooling fan caused.
• Use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures. The control system only with the IPC, and higher reliability.
• Use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel
transmission chip, reducing the complexity ofthe transmission display, reducing the complexity of the control system to improve the stability of the product.
• Using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the stability of the display.
• Using a common network data transmission technology, improve gradation display variable message signs, information boards enable a better display.
• Using a common network data transmission technology, in favor of compatibility and product upgrading. Help to improve the response speed of the system variable message signs.
Product Waterproof Use cabinet design
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Cabinet has a variety of colors
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Product Parameter
lamp beads
specific traffic lighting LEDs
pixel pitch
P16,P20,P25,P31.25,P33.33
display dimension
customize
cabinet material
aluminum or cold rolled iron
chip color
amber, tri-color , full color or custom
brightness
>10000cd/m2
brightness adjust
manual or auto adjust
viewing distance
250-300m
control mode
asynchronous control
communication port
RS232/RS485/RJ45/GPRS/3G etc
Refresh rate
>120hz
certificate
CE/FCC/ROHS etc
life span
100,000 hours
rate of dot out of control
<1/10000
Insulation resistance
>100MΩ
high voltage resistance test
withstand 1500V / 50Hz AC voltage for 1 minute without breakdown
Impact resistance test
pass
Vibration resistance test
pass
Contact resistance
<0.1Ω
Protection class
IP65
Operating Humidity
5%-95%
Operating temperature
-40ºC~+75ºC
power supply
AC220V±18% / 50Hz±10%

AC380V±18% / 50Hz±10%
Product configuration and implementation of standards
Name
Specification
Function
control system
main control system
communicate with the centerof the screen
drive traffic monitoring
Brightness adjust system
Brightness adjustment based on ambient light traffic control system screen brightness
power system
power distributor
Centralized power system distribution box
power lightning protection devices
imported professional ightning protection
signal lightning protection devices
devices
Remote Switch electrical system
Remote Switch electrical system with remote, step-switch function
Communication module
RS-485 communication moduleindustrial grade communication module
Industrial communication module
RS-232 communication module
Ethernet communication module
LED variable message signs screen perform the following national standards
LED variable message screen
GB/T 23828-2009
fully in accordance with international design,
production and testing
Traffic sign display
GB 5768.2
traffic sign text, graphics meet the standards
Chinese character display
GB 2312
digital display standard Chinese characters
Shell protection grade
GB 7000.1
IP65 protection rating
Communication interfaces and protocols
JT/T606.1 and JT/T606.3
standard asynchronous
Quality Control Process
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Package Method
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Company Profile
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Project Case
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
Highway Roadxpressway Led Display Vms Board for Dynamic Message Sign on Matrix Screen
FAQ
Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets . no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience , and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course , but our size already so much. If you want custom please contact LED Gas Signs Customers.
