Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Specifications
Application :
Outdoor Advertising Led Display
Type :
LED
Color :
FULL COLOR
Panel Size :
320*320, 320*320
Supplier Type :
Original manufacturer, ODM
Media Available :
datasheet
Place of Origin :
Guangdong, China
Model Number :
FS-P8
Brand Name :
Glare-led
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch :
Other, Other
Specification :
320*320
HS Code :
8531909000
Resolution :
320*320
Usage :
OUTDOOR
Display Function :
Video
Product name :
outdoor front service p8 led module
Warranty :
1 Years
Brightness :
6000cd~6500cd/m2
LED chip :
Nationstar
Module size :
320*320mm
Average Power consumption :
260
Drive Method :
1/4 Scan
wateproof level :
IP65
Price :
Negotiable
Description
Product Description

Outdoor P8 40x40 front service modules

Glare-LED outdoor front service p8 led module is designed for the front size service cabinet , the feature is to saving the cabinet space, reduce the cabinet thickness and weight, not only can blend well with the surrounding buiding environment，meanwhile save space while ensuring effect. between the module and the cabinet is installed without screws, more convenient in assembly, a few seconds can be removed by six angle screwdriver, great improve work efficiency.

Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Product name
outdoor front service p8 led module
Pixel pitch
8mm
Pixel composition
Full color
Viewing angle
horizontal 120 °, vertically 120 °
Led Module Size
320*320*30(mm)
Led Module Resolution
40(W)x40 (H)dot s
Module power consumption
85w
Module weight
1500±10g
LED Chip Brand
SMD Nationstar chip
Driving method
1/4scan, constant current
Led Module working voltage
5V
Led Module brightness
≥6000cd/㎡
Operating temperature
-20℃~+50℃
Best Viewing Distance
8~24m
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet

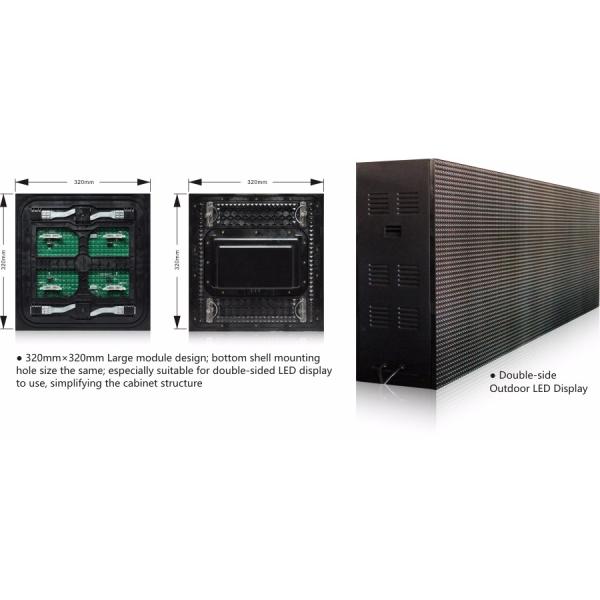

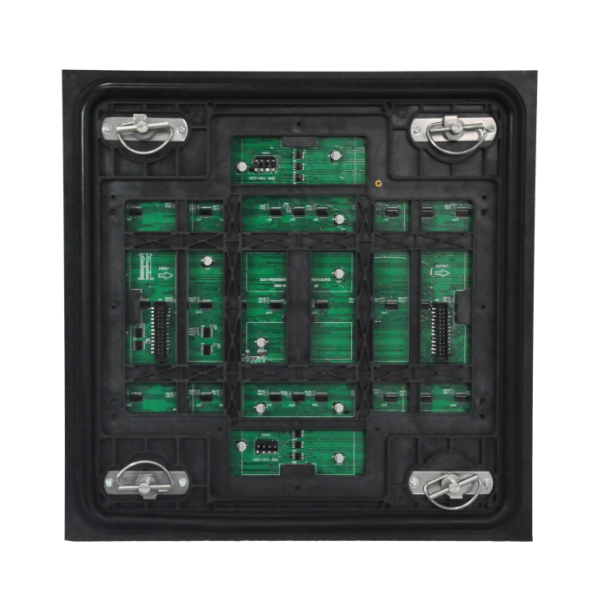

P8 led module Backsize overview

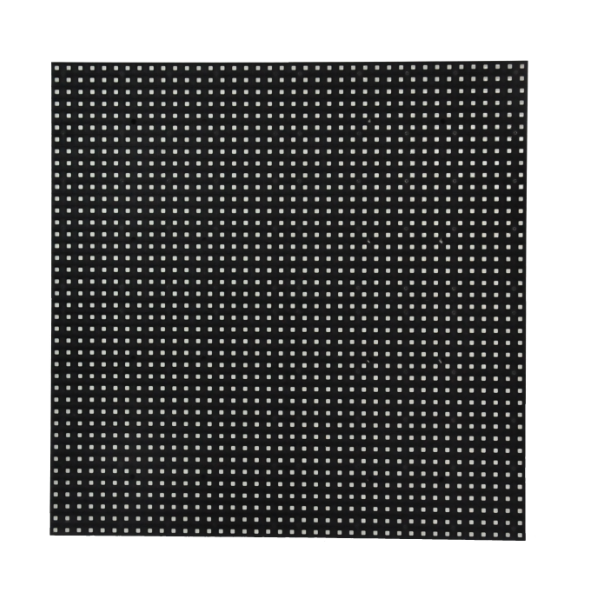

Front service p8 led module overview


Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet

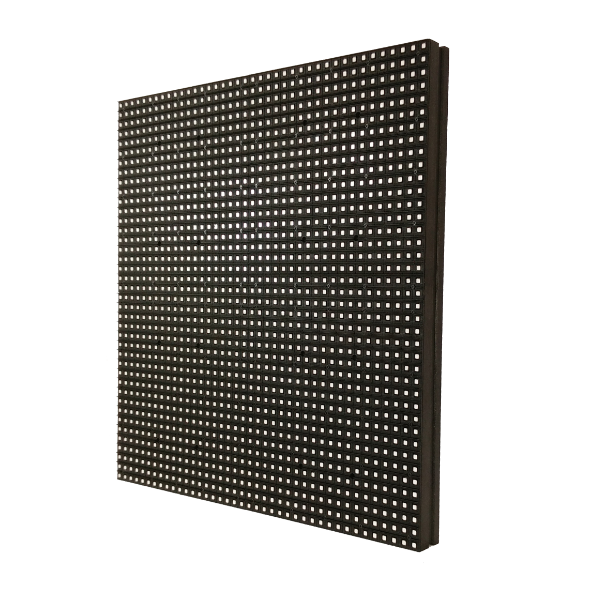

Lateral view for outdoor p8 led module

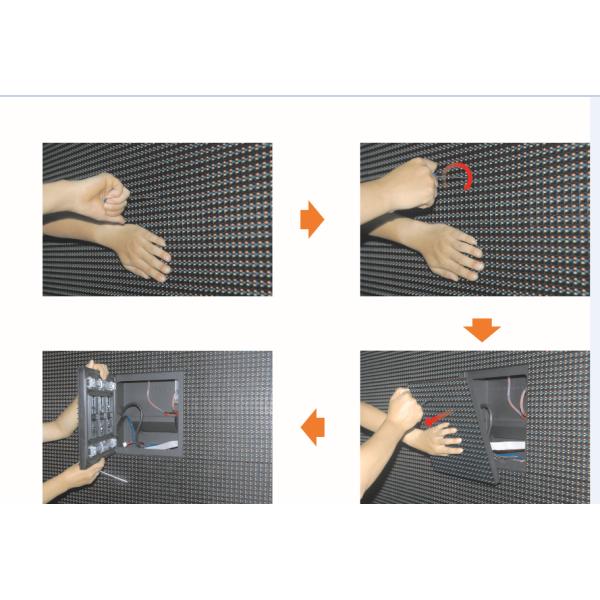

front size service led module maintance with screw


Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet

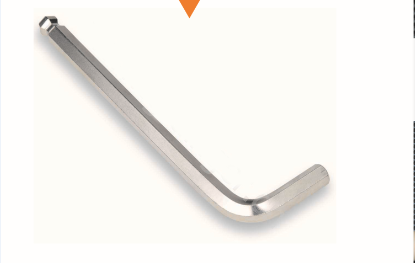

Screw for led module


Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Doule size outdoor led display made with front service module


Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet

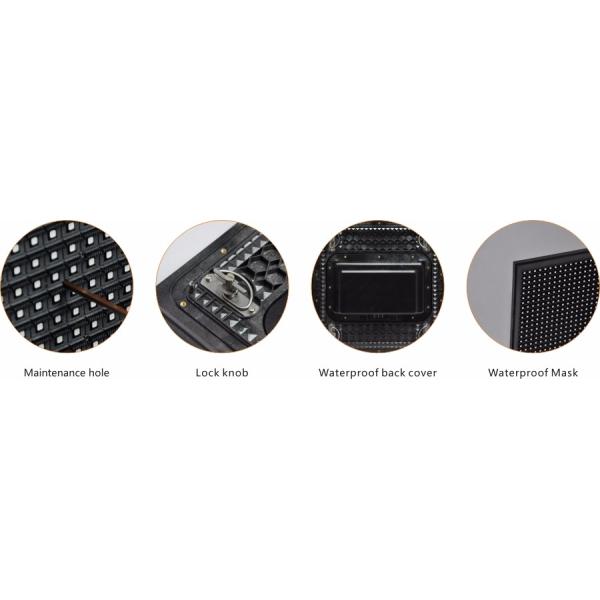

Detailed Images
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Application
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet


Packing & Delivery
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet

Standard wooden packaging make sure LED Display safe deliver. For shipping method per your requirements by sea or by air.

Company Information:

Glare-LED provides user with high-quality LED products by adhering to the responsibility of "for customers, for employees, and for societ", having "attentive, professional, and concentration" job manner, to provide customers with excellent products and first-class service.
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
Outdoor P8 40x40 Front Service LED Display Module with 320*320 Resolution and Datasheet
