Specifications
Brand Name :
Glare-LED
Model Number :
GLG-TDL-160S
Place of Origin :
Guangdong, China
Price :
Negotiable
Type :
LED
Panel Size :
256*256*35mm, 256*256*35mm
Application :
Outdoor, Expressway Tunnel, Urban Road
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Media Available :
datasheet, Photo
Color :
full color/Dual-color/Single Color
Pixels :
Other, Other
Item name :
P16 Full color Module
Pixel configuration :
1R/1G/1B
Input voltage :
5V
weight :
990g+10g
Max current :
5.4A
Viewing angle :
>70°
Brightness :
8000CD/㎡, 8000CD/㎡, 8000CD/㎡
HUB Port :
HUB75
Module Resolution :
16*16Dots
Item size :
256*256*35mm
Supplier Type :
Original manufacturer, ODM, OEM
Specification :
16*16
HS Code :
4531200000
Resolution :
16*16
Description

High Brightness Single Color LED Display Module P10 P16 P20 for City Road Gantry Top

High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Products Overview
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Outdoor DIP LED Module is for outdoor advertsing.with high definition and high brightness and long viewing distance.With 10000 dots per square meters of Outdoor Full color LED Display panel P10/P16/P20 of which the pixel size is 10mm,16mm,20mm. The grayscale of each is 16384, and 16,777,216 kinds of colors in total. Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation; cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system. On the other hand, LED panel can display text, pictures, animation as well as video.
Advantages
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Product Parameter
Pixel Pitch
Pixel Config
Resolution
Package
Power
Visual Angle
Brightness
Module Size
P10
1R1G
16*32
347
215W/m2
70°
7000cd/m2
160*320
2R1G
170W/m2
8000cd/m2
1R1G1B
292W/m2
8000cd/m2
P16
2R
8*16
347
125W/m2
70°
5000cd/m2
128*256
2R1G
8*16
347
185W/m2
30°
8000cd/m2
160*320
1R1G1B
8*16
347
305W/m2
30°
8000cd/m2
160*320
2R
16*16
347
125W/m2
70°
5000cd/m2
256*256
2R1G
347
185W/m2
8000cd/m2
1R1G1B
347
305W/m2
8000cd/m2
P20
2A
8*8
347
130W/m2
70
5000cd/m2
160*320
P25
2R1G
8*8
347
198W/m2
30°
8000cd/m2
200*200
P25
2R1G1B
8*8
347
297W/m2
30°
8000cd/m2
200*200

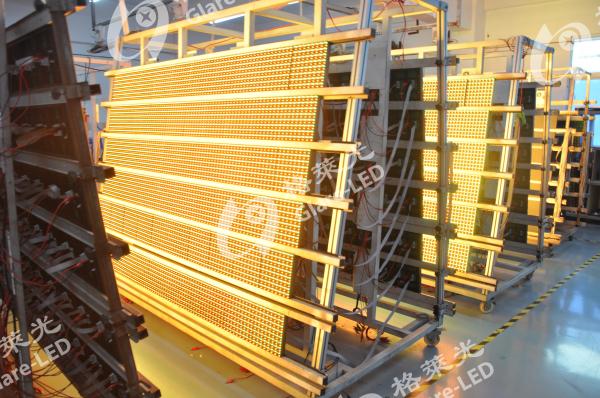

Quality Control Process
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Package Method
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Products application
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
5 meters traffic led display being composed of led modules
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
10 meters traffic led display being composed of led modules
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Traffic variable message sign
Company Profile
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
Project Case
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
High Brightness Single Color LED Display Module P10 P16 P20 For City Road Gantry Top
FAQ
Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience, and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
