Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Specifications
Place of Origin :
Guangdong, China
Model Number :
GLG-TDL-330D
Brand Name :
Glare-LED
Price :
Negotiable
Application :
Outdoor, Expressway Tunnel, Urban Road
Type :
LED
Color :
Dual-color
Panel Size :
266.6*133.3*31mm, 266.6*133.3*31mm
Supplier Type :
Original manufacturer
Media Available :
datasheet, Photo
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Pixel Pitch :
Other, Other
Specification :
8*4
Brightness :
12000cd/㎡, 12000cd/㎡, 10000CD/m
HS Code :
8531909000
Resolution :
8*4
View Angle（H/V） :
30°, 30°
Item name :
P33.33 Tri color Module
Pixel configuration :
4R2G
Input voltage :
5V
weight :
565g+10g
Max current :
1A
Viewing angle :
>30°
HUB Port :
HUB12
Module Resolution :
8*4Dots
Item size :
266.6*133.3*31mm
Description

Waterproof Outdoor LED Panel Module with Module Resolution 8*4Dots and Max Current 1A

Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Products Overview
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
The VMS Modules has the characteristics of high waterproofness, high luminous efficiency and long service life. It has gooddisplay effect, bright colors, high brightness and long viewing distance, which is very suitable for use as outdoor traffic
variable information screen and outdoor advertising screen.
Expressway LED module is widely used in expressway tunnel, urban road, dense section of road network of main highway lines, urban
road, street airport, wharf, station and other traffic guidance and related application fields.
Advantages
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Product Parameter
Pixel Pitch
Pixel Config
Resolution
Package
Power
Visual Angle
Brightness
Module Size
P16
2A
8*16
DIP Ø5
190W/m2
30°
8000cd/m2
128*256
P16
2R1G
8*16
DIP Ø5
230W/m2
30°
10000cd/m2
128*256
P16
1R1G1B
8*16
DIP Ø5
310W/m2
30°
12000cd/m2
128*256
P20
2A
8*16
DIP Ø5
150W/m2
30°
8000cd/m2
160*320
P20
2R1G
8*16
DIP Ø5
200W/m2
30°
10000cd/m2
160*320
P20
1R1G1B
8*16
DIP Ø5
250W/m2
30°
12000cd/m2
160*320
P25
2A
8*8
DIP Ø5
150W/m2
30°
6000cd/m2
200*200
P25
2R1G
8*8
DIP Ø5
200W/m2
30°
10000cd/m2
200*200
P25
2R1G1B
8*8
DIP Ø5
250W/m2
30°
12000cd/m2
200*200
P31.25
4A
8*8
DIP Ø5
100W/m2
30°
8000cd/m2
250*250
P31.25
4R2G
8*8
DIP Ø5
130W/m2
30°
10000cd/m2
250*250
P31.25
4R2G1B
8*8
DIP Ø5
200W/m2
30°
12000cd/m2
250*250
P33.33
4A
4*8
DIP Ø5
90W/m2
30°
8000cd/m2
133.3*266.6
P33.33
4R2G
4*8
DIP Ø5
140W/m2
30°
10000cd/m2
133.3*266.6
P33.33
4R2G1B
4*8
DIP Ø5
200W/m2
30°
12000cd/m2
133.3*266.6

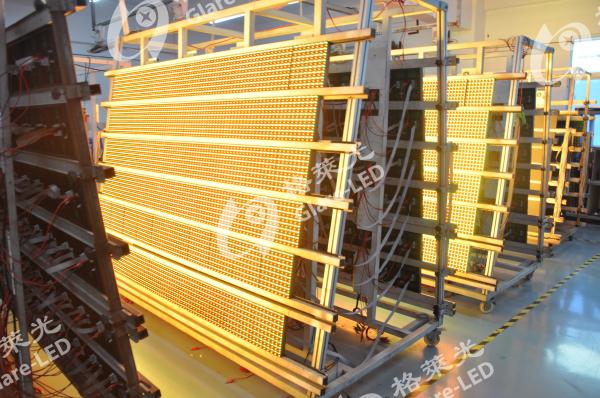

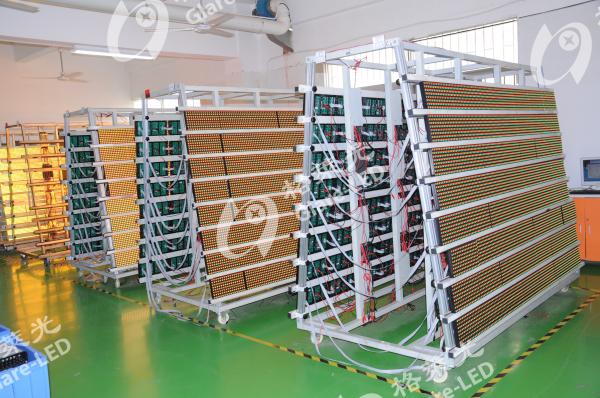

Quality Control Process
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Package Method
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Products application
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
5 meters traffic led display being composed of led modules
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
10 meters traffic led display being composed of led modules
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Traffic variable message sign
Package Method
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Project Case
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
Waterproof Outdoor LED Panel Module Resolution 8x4Dots 1A variable message board
FAQ
Q: What do the gas price display come with?
A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience, and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
