Educational Refrigeration Training Kit 0.88CBM Exhaust Aeraulic Air Conditioner Training
Educational Refrigeration Training Kit 0.88CBM Exhaust Aeraulic Air Conditioner Training
Specifications
Brand Name :
ShouldShine
Model Number :
ZM6133
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negociate
Payment Terms :
D/A, D/P, L/C, T/T, Western Union
Supply Ability :
5000 sets per year
Delivery Time :
35 days
Packaging Details :
plywood box
Function :
Air Conditioning Trainer for college,vocational schools,university
Dimension :
0.88CBM
Weight :
89kgs
Model :
ZM6133
Color :
grey
package :
plywood
Description

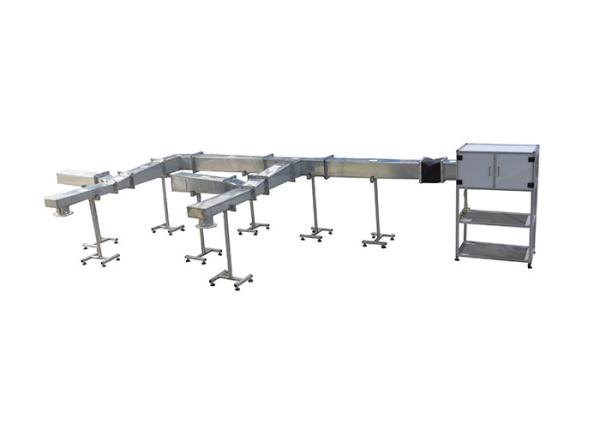

ZM6133 Aeraulic Networks Balance Study Module Air Conditioner Trainer Educational Equipment

I Introduction


Among the ventilation, thermo ventilation, air conditioning installations, the verifications of a correct aeraulic network balance is an essential condition to avoid vane efforts of a correct design: the unbalance of one or more zones might cause the missing satisfaction of thermal loads or of ventilation flows of each served environment.


The module, properly designed for educational purposes, allows the study of a duct network balance with field evaluation of parameters such as the static pressure and the air speed in correspondence of different points of the circuit.


The student will be able to deepen the knowledge on the problems related with the air flow and with the pressure losses.


Supply software which can monitor voltage, current, frequency, power, power factor,
pressure, flow, etc, they can be displayed on PC in real time, and can print report.

II Training Program


Study of the components of a ventilation system: fan exhaust grilles, ducts, calibration dampers, supply grilles, etc.


Connection of the different installation components and verification of the system functionality
Field measurements of the static, dynamic and total pressure and of the air speed in different points of the air circuit


Localized and distributed pressure losses
The loss coefficients


Dampers calibration to respect the prescribed values of the room air flow

Spare parts


English product manual
English user manual
