Specifications
Brand Name :
ShouldShine
Model Number :
ZE3137
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negociate
Payment Terms :
L/C, D/A, D/P, Western Union, T/T
Supply Ability :
5000 sets per year
Delivery Time :
35 days
Packaging Details :
plastic film+carton+plywood box
Model :
ZE3137
Application :
transformer and motor educational teaching
Dimension :
2.12CBM
Weight :
386kgs
Color :
grey
package :
plywood
Description

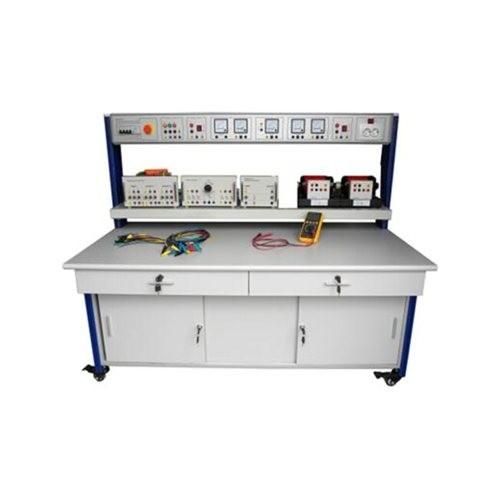

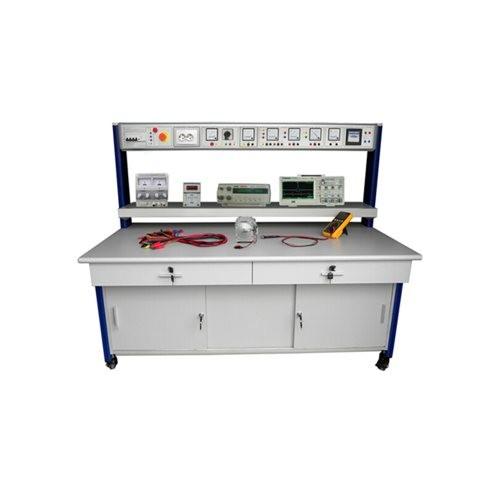

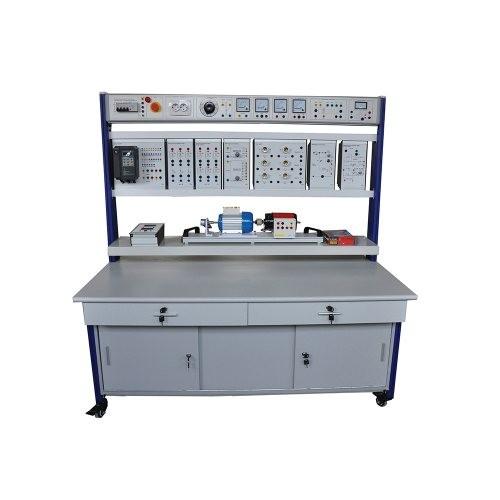

ZE3137 Vocational Training Equipment Electrical Machine Trainer Transformer Trainer
1 Overview
1.1 Introduction
This training set include various of transformers, students can be familiar with various types of transformers features, control principles, and knowledge through training and
experiments. It is suitable for students in vocational schools, technical schools, colleges.
1.2 Feature
(1)Training workbench use aluminum column structure frame, it include meter box and power box to test and measure technical parameter, it is easy to use and it is not easy to be broken.
(2)Equipped with transformers, students can make combination, and finish many
training contents and experiments.
(3) Trainer has high safety system.
2 Technical parameter
(1) Input power: three phases, five wires, 380V±10% 50Hz
(2) Dimension: 1600mm×800mm×800mm
(3) Whole capacity:＜1.5KVA
(4) Weight: ＜80kg
(5) Work environment:
Environment temperature: -10℃～+40℃
Relative humidity: ＜85%(25℃)
3. Product compose
3.1 Power control panel
Power control panel use aluminum structure metal panel, all close type boxes
structure, it can connect with down shelf together.
3.2 Power control panel
(1) Three phases, five wires power input, it has been tested by leakage breaker
control, it has emergency stop button, you can cut off electricity when emergency.
(2)Control panel supply power indicator, European type power output sockets, and
safety type output interface.
(3)It equipped AC and DC power source, with short circuit protection function.
(4)Inner point type voltage meter, current meter and power meter.
4 Experiment available
4.1 Single phase transformer experiments
(1) Single phase transformer static test
(2) Single phase transformer empty load and load characteristic
(3) Single phase transformer voltage short and current short circuit test
(4) Single phase ring shape transformer empty load and load characteristic test
(5) Single phase ring shape transformer short circuit voltage and short current test
4.2 DC motor experiment
(1) DC separate excitation, shunt excitation and compound excitation motor and
generator working principle and features.
(2)DC separate excitation, shunt excitation and compound excitation motor and
Generator static feature test.
(3)DC separate excitation, shunt excitation and compound excitation motor and
Generator operation feature and running feature.
(4)DC separate excitation, shunt excitation and compound excitation motor and
Generator load feature.
4.3 Three phases transformer experiments
(1) Three phases transformer principle features
(2) Three phases transformer static test
(3) Three phases transformer star connection and function
(4) Three phases transformer delta connection and function
4.4 Transformer comprehensive training
(1) Transformer installation and circuit wire check
(2) Winding DC cold resistor test
(3) Insulation resistor test
(4) Transformer over load experiment test
(5) Transformer empty load experiments
(6) Transformer temperature rise experiments
(7) Transformer load experiments
4.5 Motor comprehensive training
(1) Motor installation and circuit check and test
(2) Winding DC cold resistance test
(3) Insulation resistor test
(4) Motor speed exceed experiments
(5) Motor empty experiments
(6) Motor temperature rise experiments
(7) Motor stalling experiments
(8) Motor load experiments

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg


Training Room Photo
380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg


Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg
Photo for Clients Visiting Factory
380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg

380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg

380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg

380V Transformer Trainer 1.5KVA Vocational Electrical Trainer Kit 80kg
Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.

No.Feature NameDetails
1Customer designYes
2Warranty1 year, 2 years, 3 years or 5 years according to client requirements
3PackagePlastic film+ carton+ Fine plywood
4Products standardInternational didactic equipment standard
5Application rangeEducational equipment for university, college, vocational training centers
6Company philosophySupply best quality Chinese products to the worldwide schools.
7Self owned brandShouldshine, SSEDU, JSS.
8Production timeFrom 10 days to 60 days according to different items
