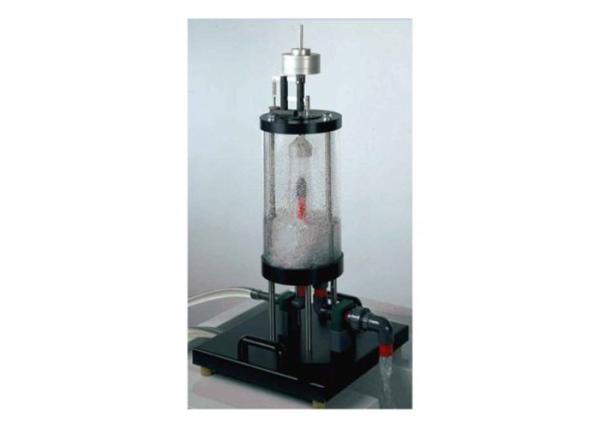

ZM8146 Engineering Teaching Equipment Hydrodynamics Laboratory Equipment Impact Of A Jet Demonstration Apparatus

Purpose - This equipment enables students to measure the force developed by a jet of water impinging upon a stationary object.

ORDERING SPECIFICATION

● Discharge nozzle inside clear acrylic cylinder

● Four different target plates which fit onto a balance mechanism

● Quick release fitting for easy connection to hydraulics bench

This equipment allows the force developed by a jet of water impinging upon a stationary object to be measured.

MEASUREMENT CAPABILITIES

• Measuring the force exerted on different targets and comparison with the forces predicted by momentum theory

TECHNICAL DETAIL

• Nozzle diameter: 8mm
• Distance between nozzle & target plate: 20mm
• Diameter of target plate: 36mm
• Target plates:

– 180⁰ hemispherical target

– 120⁰ target (cone)

– flat target

– 30⁰ target

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.


Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
