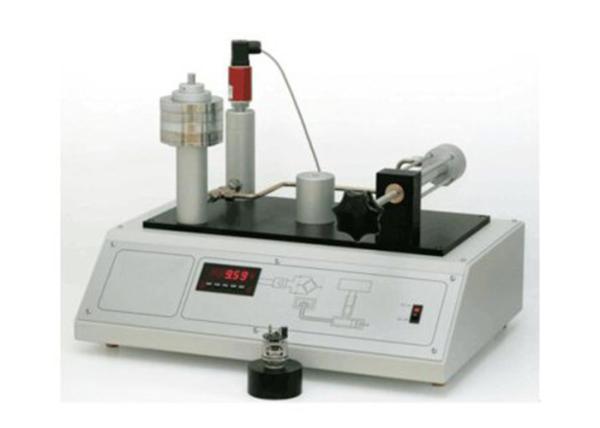

ZM7154 Calibrating a Pressure Sensor

• calibration unit with dead-weight piston manometer and hand-operated spindle
• electronic pressure sensor with ceramic measuring cell, integrated amplifier and voltage output
• digital display for output signal
• additional pressure sensor as cutaway model
• set of weights
• transmission medium: hydraulic oil
• process schematic on front panel

Technical Data

Pressure sensor

- measuring range: 0...2,5bar

- supply: 24VDC

- output signal: 0...10VDC

Piston manometer with pressure piston

- diameter: 12mm

- number of weights: 5

- pressure graduations: 0,5 - 1,0 - 1,5 - 2,0 - 2,5bar

Digital display: 4 1/2 digits

Hydraulic oil: HLP ISO 32

Dimensions and Weight

LxWxH: 600x450x450mm

Weight: approx. 20kg

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.


Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
