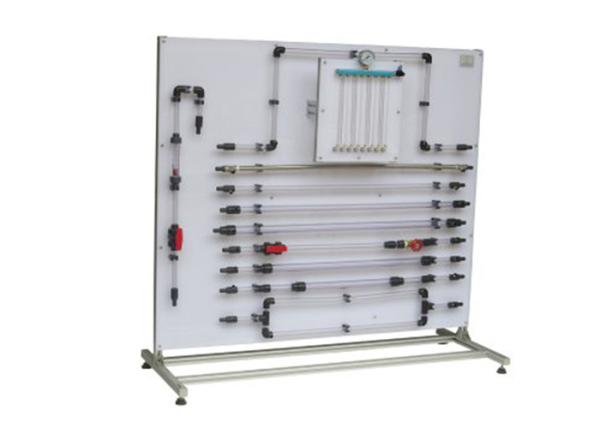

SR3202A Venturimeter, orifice meter and rotameter test rig

Objective:

To demonstrate the use of Venturimeter& Orifice meter as flow meters.

To determine co-efficient of discharge through Venturimeter, Orifice meter and rotameter.

Test unit: 1

Utility Required: Water supply, drain, electricity – 0.5 to 1kW, 220 V AC, single phase, Mercury (Hg) for manometer (250 gm).

Technical Details:

Manometer Fluid : Mercury (Hg) - 250 gm

Sudden Enlargement : From 15mm to 25mm

Sudden Contraction: From 25mm to 15mm.

Rota meter: Compatible Range.

Bend: ½”

Elbow: ½”

Ball valve: ½”

Gate valve: ½”

Water Circulation: FHP Pump

Flow Measurement: Using Measuring Tank with Piezometer, Capacity 25 Ltrs.

Pressure Drop Measurement: Differential Manometer

Sump Tank: Capacity 50 Ltrs.

Stop Watch: Electronic, an instruction manual in English

Standard make On/Off Switch, Mains Indicator, etc
