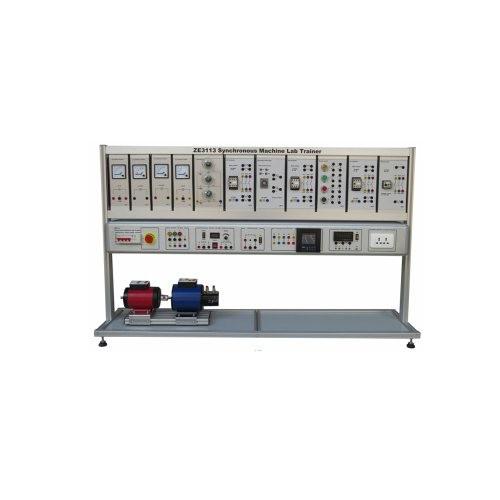

ZE3113P Synchronous Machine Lab Trainer

I. Product overview

1.1 Overview

The training device includes various types of inductive motors and industrial control components. Through relevant experiments, you can familiarize yourself with the operating characteristics of DC motors and synchronous motors, master the control principles and control methods, and cultivate students' corresponding knowledge and skills. Teaching and skills training assessments for vocational, tertiary, secondary vocational schools and technical schools.

1.2 Features

(1) The training platform adopts aluminum profile column frame structure, with cushion on the bottom, measuring instrument and training power supply built-in integrated installation, easy to use and not easy to damage.

(2) The motor is fully equipped and can be used in combination to complete the training content of various courses.

(3) The training platform has a good security protection system.

Second, the performance parameters

(1) Input power: three-phase five-wire system 380V±10% 60Hz

(2) Dimensions: 1600mm × 400mm × 1200mm

(3) Machine capacity: <1.5KVA

(4) Weight: <150kg

(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)

3.4 Companion devices

(1) DC series excitation motor 1 set

(2) Three-phase synchronous motor 1 set

(3) Time relay control unit 1 set

(4) Thermal delay overcurrent relay control 1 set

(5) Contactor interlock circuit control unit 1 set

(6) Button module 1 set

(7) DC voltage measurement module 1 set

(8) AC voltage measurement module 1 set

(9) DC current measurement module 1 set

(10) AC current measurement module1 set

IV. Experiment list

4.1 Three-phase AC permanent magnet synchronous motor related experiments

(1) Principles of three-phase AC permanent magnet synchronous motor

(2) Static test of three-phase AC permanent magnet synchronous motor

(3) Three-phase AC permanent magnet synchronous motor connection and operation

(4) Start-up control experiment of three-phase AC permanent magnet synchronous motor

(5) Speed control operation control of three-phase AC permanent magnet synchronous motor

(6) Closed-loop control experiment of three-phase AC permanent magnet synchronous motor

4.2 series excitation DC motor related experiments

(1) Motion function and transmission group test

(2) Static test of motor technical parameters

(3) Motor control circuit connection and function

(4) Technical test of sports function

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.
