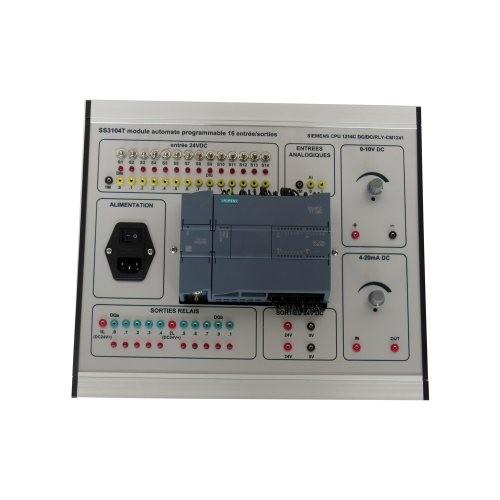

SS3104T Engineering Teaching Equipment Electrical Skills Training Compact PLC 16 Inputs Outputs

1. Product Overview

1.1 Overview

This training device is Siemens 1200PLC module. Through related experiments, you can familiarize yourself with the basic use and programming methods of S7-1200 PLC, and the use of programming software. Cultivate students' corresponding knowledge and skills, suitable for higher vocational, higher vocational, secondary vocational schools and technical and vocational schools related teaching and skills training assessment.

1.2 Features

(1) Standard modular unit hanging box, PLC embedded installation.

(2) Input and output of the PLC module All the terminals are led out to the panel through the adapter terminal, and connected using the K2 test line.

(3) PLC module selects Siemens 1214C module, provides digital input 14 in 10 out, analog 2 input, supports memory card, supports Ethernet module expansion.

(4) The PLC input can simulate the digital input state through the switch operation.

(5) LED lights indicate the input and output status.

2. Performance parameters

(1) Input power: single-phase three-wire system 220V±10% 50Hz

(2) Dimensions: 297mm × 230mm × 80mm

(3) Machine capacity: <1KVA

(4) Weight: <100kg

(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)

3. Product composition

(1): Module digital input

(2): Module analog input

(3): Voltage analog signal DC 0-10V output

(4): Total power supply

(5): Module relay output

(6): PLC module

(7): PLC DC 24V output

(8): Current analog signal DC 4-20mA output

3.1 Module digital input

The module contains 14 digital outputs, each with a switch analog digital input status and an LED indicator indicating the digital input status.

3.2 Module analog input

The module contains 2 analog input points for voltage analog or current analog signals.

3.3 Voltage analog signal DC 0-10V output

The module contains a set of DC 0-10V DC voltage analog signal, which can be used as PLC DC voltage analog input signal.

3.4 Total power supply

The module power supply is AC220V input, and the built-in DC24V power supply supplies power to the PLC. Power outlets with switches and fuses are safe and reliable.

3.5 Module relay output

The module contains 10 relay outputs, each with an LED indicator to indicate the relay output status.

3.6 PLC module

This module contains the Siemens CPU1214C DC/DC/RLY and CM1241 modules. A total of 14 digital inputs, 10 thyristor (DC24v) outputs, and 2 analog inputs have been introduced to the module panel.

3.7 PLC DC 24V output

The module contains two sets of PLC output DC24V power supplies.

3.8 Current analog signal DC 4-20mA output

The module contains a set of DC 4-20mA DC current analog signal, which can be used as PLC DC current analog input signal.

3.9 Companion devices

(1) Communication line 1piece

(2) PLC programming software CD 1 piece

(3) 10A fuses 10 pieces

(4) 1 yellow indicator light, 1 green indicator light, 1 red indicator light

(5) English manual 1 piece

(6) 2mm test line 25 pieces

(7) 2mm terminals 3 pieces

4. Can complete the training content

(1) Computer and PLC communication training

(2) PLC programming training

(3) Computer monitoring PLC status training

(4) PLC analog input training

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
