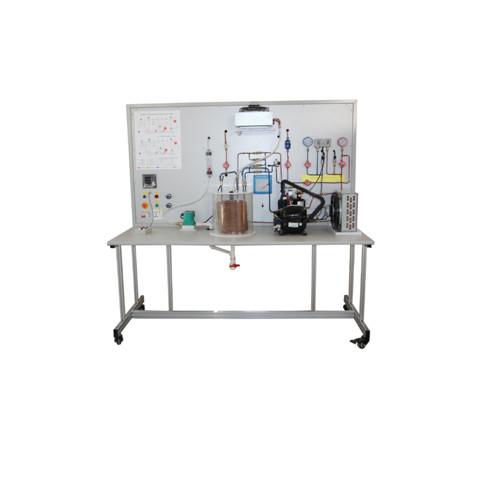

ZM7102 Basic Heat Pump Demonstrator

Functional model of a water-to-water heat pump

Coiled pipe evaporator/condenser, Cu

Piston compressor, thermostatic expansion valve,

pressostat, sight glass, 2 manometers

2 thermometers to determine the water temperatures in the tanks, -10...50°C

Refrigerant R134a, CFC-free

Components bolted to metal sheet

220V, 50Hz, 1 phase

Piston compressor:

power consumption: 97W at -10/32°C,

refrigerating capacity: 222W at 5/32°C

Pressure switch: max.

temperature difference that can be reached: 50°C Manometer with temperature scale for R134a,

temperature scale: -60...80°C,

measuring ranges: -1...9bar / -1...24bar

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.
