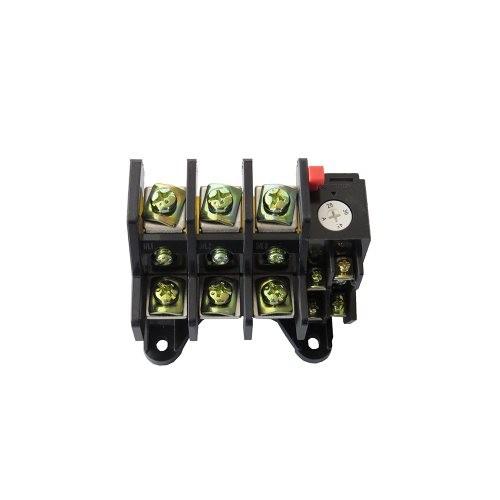

SR6117E Overload Relays Three Pole

1 Introduction

Thermal overload relay is the principle of applied electric current heat effect, which is used as the overload relay of the sensitive element, and also known as thermal relay. The so-called electrical thermal sensitive bimetallic strip is made of two kinds of alloy heated by the difference between the two linear expansion coefficients. When heated, bimetallic plates are bent from the high expansion layer (active layer) to the lower expansion layer (passive layer). When the current is too large (exceeding the set value), the element is moved by the "heat", and the power of the controlled circuit and the protected equipment is cut off by the connected dynamic break contact. [1]

Thermal overload relay is used for motor overload protection with various types. The thermal overload relay is easy to install and easy to use. It has a complete function and low cost. It has been proved by practice that it can reliably protect the motor, so it has always been an important position.

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.
