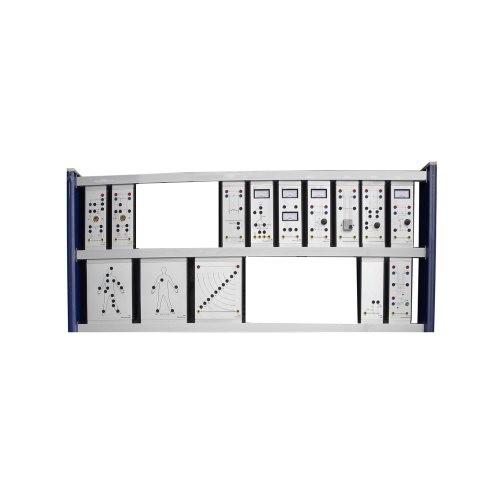

ZE3205 Neutral Study Training Bench

I. Product overview

1.1 Overview

It can through training, let students be familiar with various electric accident reasons so as to prevent electric accident occur. Through learning, students will learn of how the accident occurs, and take cautions on electric accident, so as to enhance the ability of prevent accident, solve electric accidents. Students can learn many safety protection mode in the trainer.

1.2 Feature

(1)Training module use aluminum column, testing measures, inner integrated training power box. It is easy to use, and it is not easy to be broken.

(2)Modular structure: it has many modules, and it can achieve many training projects, please see the experiment list later.

(3)It has good safety protection system, all the electric terminals select safety plug terminals, the whole set can be connected to ground, if there is electric leakage occurs, students can cut off power immediately, so as to protect themselves.

II Technical parameter

(1) Input power: single phase three wire, 220V±10% 50Hz

(2) Dimension: 1600mm×300mm×1000mm

(3) Whole capacity:＜2.0KVA

(4) Weight: ＜100kg

(5) Work condition:

Environment temperature:-10℃～+40℃

Relative humidity: ＜85%(25℃)

III. Equipment configuration:

1. TT power supply network simulation unit

2. TN-C-S power supply network simulation unit

3. IT power supply network simulation unit

4. Insulation resistance simulation measurement unit

5. Ground resistance simulation measurement unit

6. Short circuit fault simulation training unit

7. The line load simulates the actual training unit

8. Ac voltage current meter unit

9. Electric leakage protection current measurement unit

10. Leakage circuit breaker unit

11. Simulated load cell

12. Measurement simulation unit of human electrocution current

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.
