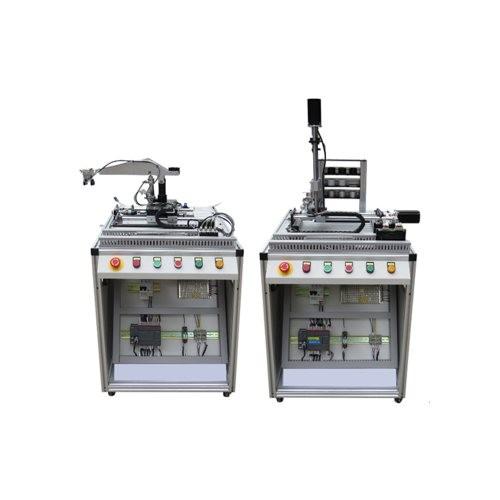

SS2105 multi process regulation Training station

I.Overview

Product uses workbench structure, the aluminum alloy frame design, control object and control system design, fission can combine both put on the work station, and can according to need to separate use, for example: adding control system to different simulated load hanging box, can become the PLC training device, greatly increased the flexibility of equipment used.

Device input/output interface has good compatibility, drive unit and PLC control unit adopts hanging box model, it can easily be replaced the, can be used as electronic circuit of the load, and can be as the execution object of PLC control system, and according to the need to extend the upgrade.

Industry widely used temperature, flow, liquid level, pressure, composition of five thermal detection sensing device, to the embodiment of the diversity, and design the relevant experiments.

The combined Pressure, Level, Flow and Temperature, PH Process Control System is self-contained and has all of the features of the individual Level,Flow, pressure , Temperature and PH systems .

The 4-20mA Analogue set-Point input allows various forms of cascade control to be implemented between linked or interactive control loops.

The process set-point can be selected from the front panel, or in response to a logic input.

II. Equipment configuration:

1. Object of execution:

The subjects included: transparent plexiglass storage tank; Transparent cylindrical pressure tank and transparent cylindrical buffer tank etc.

Power system: consists of dc diaphragm drive pump, electric regulating valve, dc solenoid valve, turbine flow meter, etc.

All the accessories are made of aluminum alloy or stainless steel and acrylic, good corrosion resistance.

2. Actuators: high power PWM pressure regulating device and direct current heating tube make up the heating power, electric regulating valve, PWM speed regulating circuit and solenoid valve.

3. Detection sensor: (routine)

(1) diffusion silicon pressure transmitter 1: check pressure inside the pressure tank;

(2) turbine flowmeter 1: check the flow of power loop;

(3) Pt100 thermal resistance temperature sensor 2: used to test the pressure tank and the water temperature of the buffer tank respectively;

(4) control module: including one of the solenoid valve and electric regulating valve, for loop control and proportional opening flow control;

(5) dc diaphragm drive pump: dc 24V diaphragm pump 1, working pressure 0.8mpa;

(6) liquid level sensor (LVDT) : linear variable differential transformer LVDT for liquid level detection and control of pressure tank;

(7) float level gauge: 4 ball float, used to buffer water level detection and control of water tank;

(8) water quality monitoring instrument: an industrial on-line water quality monitoring instrument for water quality pollution detection and control.

III.Features

• Contains a selection of level, flow, pressure, temperature and PH sensors and indicators

• Primary and secondary flow controlled by linear motorised control valves

• On/Off and proportional control

P, PI and full PID control with auto-tune facility

• Can perform dual loop cascade control

• Water used as the process fluid

IV. Curriculum Coverage

• Flow,Level, temperature, pressure and PH familiarisation and calibration

• Interface familiarisation and calibration

• Controller familiarisation and calibration

• Float level transmitter

• Pulse flow transmitter

• On-Off control

• Study of P, PI and PID control of Level and Flow

• Tuning PID controllers

• Advanced process control

• Temperature familiarisation and calibration

• Interface familiarisation and calibration

• Controller familiarisation and calibration

• Pulse flow transmitter

• On-Off control

• Study of P, PI and PID control of Temperature and Flow

• Manual flow control

• Temperature process control

• Complex control loops

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
