Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Specifications
Brand Name :
SSEDU
Model Number :
SR2023
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD1000 to 2000
Payment Terms :
L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability :
2000 sets per year
Delivery Time :
30 days
Packaging Details :
fine plywood box
Usage :
Refrigeration Training Equipment
Product Name :
oil return in refrigeration systems
Dimension :
2cbm
Weight :
200KG
Package :
Fine Plywood Box
Warranty :
2 Year
Description

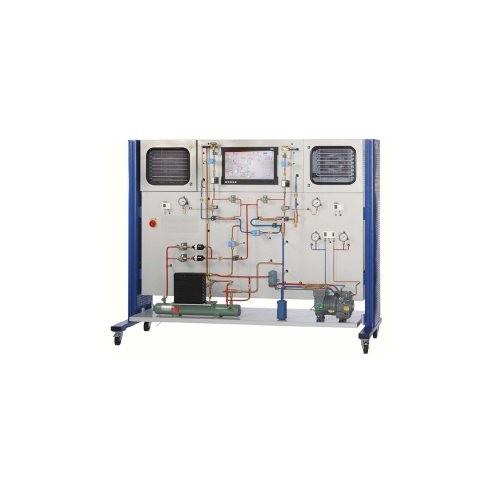

SR2023 oil return in refrigeration systems


Learning Objectives / Experiments

- fundamentals of the oil return in refrigeration systems

- effect of the rising pipe diameter on the oil transport

- effect of partial and full load operation on the oil transport

- principle of operation of a double rising pipe

- separate or parallel operation of the compressors

Specification

[1] investigation of the oil return to the compressor in refrigeration circuits with oil soluble in refrigerant

[2] refrigeration circuit with 2 compressors connected in parallel, condenser with 2 fans, evaporator with fan and thermostatic expansion valve

[3] 3 single and 1 double rising pipes from glass in the suction pipe of the refrigeration circuit

[4] rising pipes selectable via valves

[5] Flow rate in the refrigeration circuit adjustable by single or combined operation of the two compressors

[6] fan speed adjustable

[7] thermowells for temperature measurement

[8] refrigerant R134a, CFC-free

Technical Data

2 compressors with condenser

- refrigeration capacity: 1194W at -10/32°C

- volumetric air flow rate fan: 1300m³/h

Evaporator

- transfer area: 5,7m²

- volumetric air flow rate fan: 720m³/h

Rising pipes

- d=14,4mm; L=1110mm

- d=10mm; L=1110mm

- d=6mm; L=1110mm

- d=8/10mm (double rising pipe);

L approx. 1300mm

Measuring ranges

- pressure: 1x -1...9bar; 1x -1...24bar

- flow rate: 1x 2...27L/h

- temperature: 5x -50...100°C

Dimensions and Weight

LxWxH: 1410x800x1900mm

Weight: approx. 216kg

Required for Operation

230V, 50/60Hz, 1 phase

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.


Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systems


Training Room Photo
Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systems


Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systemsDidactic Equipment Refrigeration Training Equipment oil return in refrigeration systems
Photo for Clients Visiting Factory

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems

Didactic Equipment Refrigeration Training Equipment oil return in refrigeration systems


Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.

No. Feature Name Details
1 Customer design Yes
2 Warranty 1 year, 2 years, 3 years or 5 years according to client requirements
3 Package Plastic film+ carton+ Fine plywood
4 Products standard International didactic equipment standard
5 Application range Educational equipment for university, college, vocational training centers
6 Company philosophy Supply best quality Chinese products to the worldwide schools.
7 Self owned brand Shouldshine, SSEDU, JSS.
8 Production time From 10 days to 60 days according to different items


No. Feature Name Details
1 Customer design Yes
2 Warranty 1 year, 2 years, 3 years or 5 years according to client requirements
3 Package Plastic film+ carton+ Fine plywood
4 Products standard International didactic equipment standard
5 Application range Educational equipment for university, college, vocational training centers
6 Company philosophy Supply best quality Chinese products to the worldwide schools.
7 Self owned brand Shouldshine, SSEDU, JSS.
8 Production time From 10 days to 60 days according to different items
