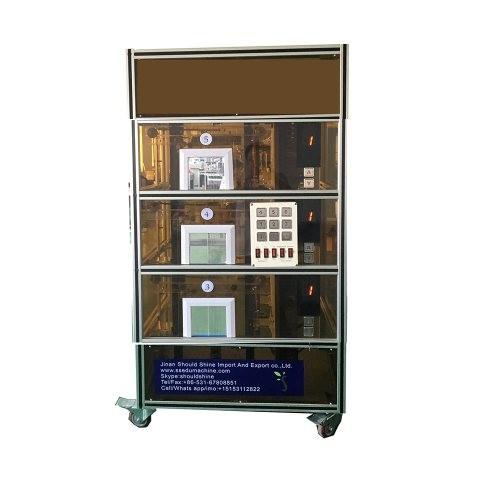

ZM3186 Model of Lift (Complete Set with PLC)

• Elevator trainer should allow users to carry out experiments about control program, structure and principal of baggage lift and passenger’s elevator;

• It should use real three-phase induction motor with electronic controlled breaker like a real elevator;

Experiments to be Performed:

• CAR’s winding machine operation exercise

• CAR’s location indication exercise

• Winding machine’s automatic stop exercise

• CAR’s high / low limit driving exercise

• Winding machine’s operation exercise

• Freight elevator’s call exercise

• Passenger elevator’s operation exercise

Technical Parameters:

Induction Motor:

• Voltage: 3Ø AC, 50/60Hz

• Rating: Continuous

• Capacity: 25W

• Brake: Electronic brake

• Reduction Gear: 30:1

Machine Structure:

• Type: 3 floor, steel move type

• Doors: 3 doors

• Car balancer: 1 Set

• Caster: 4 EA (Locking: 2 EA)

Electro Structure:

• Electronic magnetic: FOR / REV

• Limit switch: 8 EA

• MCCB (30AF, 20AT): 1EA

• Buzzer: 1EA

• Terminal point: 57 point

• Push-Button switch: 15 EA

• Pilot lamp: 9 EA

• Standard accessories with printed operation manual

The elevator trainer (model of lift) should be supplied with following PLC trainer for proper controlling (Quantity-01 set):

CPU of PLC Unit:

• Control Method: Cyclic execution of stored program, Time-driven operation, Interrupt task operation.

• I/O Control Method: Scan synchronized batch processing method (Refresh Method)

• Program Language: LD(Ladder Diagram), IL (Instruction List), SFC(Sequential Function Chart)

• Number of Instructions: LD(20EA), IL(13EA), SFC(194 EA)

• Processing Speed: 0.2/Step

• Program Memory Capacity: 128 Kbyte

• Maximum I/O Points: 512 points (With 16-pt modules), 1024 points (With 32-pt modules), 2048 points (With 64-pt modules)

Digital Input:

• Input Point: 16 Points (2 EA)

• Rated Input Voltage: DC 12/24V

• Common Method: 8 Points/1 Com

• Insulation Method: Photo Coupler Insulation

Digital Output:

• Output Point: 16 Points (2 EA)

• Rated Load Voltage: DC 12V, AC 220V

• Rated Load Current: Max 2A

• Common Method: 8 Points/1Com

• Insulation Method: Relay Insulation

• Power Module: AC 50Hz/60Hz; DC 5V/4A, 24V/0.7A

• Vibration Proof Module: Vibration proof for non-use slot

• Base: 8 slot (Maximum Number of Module Attach 8 EA)

Trainer Power Supply:

• Power: AC, 50Hz/60Hz

• Meter: 1 EA

• Main Power (Built-in Current Protection Device): 1 Unit

• P.L.C. Power (Built-in Current Protection Device): 1 Unit

• DC output power (DC 24V): 1 Unit

• Output Terminal: 4 EA

Sensor Input and Motor Device:

• DC Motor (DC 24V): 1 Unit

• Coupling: Circular Type (Hole 4 EA/Magnetic 1 EA)

• Photo Sensor (Detection Distance: 200mm): 1 EA

• Proximity Sensor (Detection Distance: 8mm): 1 EA

• Power for Sensor: DC 12V~24V

Input Signal Device:

• Non Lock Type Push Button: 7 EA

• Lock Type push button: 1 EA

• Digital Switch (BCD, 2 Digits): 1 Unit

Output Signal Indication:

• Output Lamp (DC 24V):7 EA

• Buzzer (DC 24V): 1 EA

• Segment Display (BCD, 2 Digits): 1 Unit

Digital I/O Terminal:

• Input: 32 Points (16 Points/1 COM Total 4EA)

• Output: 32 Points (16 Points/1 COM Total 4EA)

• Standard accessories with printed operation manual

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo
