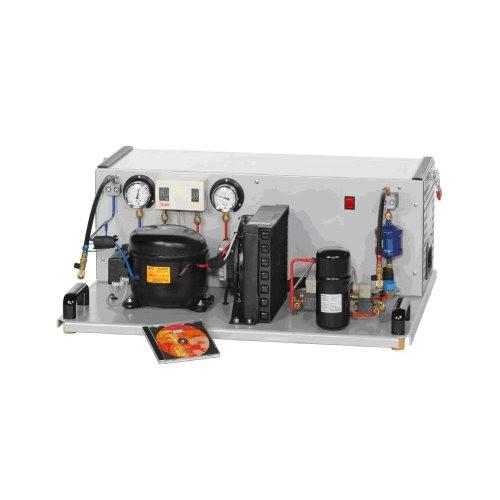

ZM6156 Air Conditioner Training System-Hardware Software Integration

Base unit for the set-up of basic experiments in refrigeration and air conditioning technology1

* Modern learning environment through hardware/

software integration (HSI)1

* Four models on refrigeration and air conditioning Technology

Technical Description

The base unit is, dependent on the objective of the experiment,

extended into complete refrigeration circuit with one of the models

available as accessories.

The main components of are compressor, condenser and receiver plus electrical and communications systems. The models are plugged onto the base unit and connected hydraulically with refrigerant hoses and electrically with cables. Self-sealing couplings reduce the refrigerant loss to a minimum. All components are arranged well visible to allow their operation to be monitored.

The modern and powerful software is an integral part of the training system in the form of hardware/software integration (HSI). It enables the comfortable execution and analysis of the experiments. The experimental

unit is connected to the PC via a USB interface.

The software consists of a software for system operation and for data acquisition and an educational software. With explanatory texts and

illustrations the educational software significantly aids the understanding

of the theoretical principles. With the aid of an authoring system, the teacher can create further exercises. Each model has its own software matching the learning objectives.

The modern and powerful software is an integral part of the training system in the form of hardware/software integration (HSI). It enables the comfortable execution and analysis of the experiments. The experimental unit is connected to the PC via a USB interface.

The software consists of a software for system operation and for data acquisition and an educational software. With explanatory texts and illustrations the educational software significantly aids the understanding of the theoretical principles. With the aid of an authoring system, the teacher can create further exercises. Each model has its own software matching the learning objectives.

The modern and powerful software is an integral part of the training system in the form of hardware/software integration (HSI). It enables the comfortable execution and analysis of the experiments. The experimental unit is connected to the PC via a USB interface.

Learning Objectives / Experiments

- fundamentals of the refrigeration cycle

- fundamentals of air conditioning

- components in a refrigeration system/air

conditioning system

- system operation

- fault finding

Product Details and Warranty
We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.
We supply 3 years warranty time.

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate
Our products takes ISO9001 product management system.
