H5 Educational Equipment Technical Teaching Equipment Didactic device for studying a venturi

• Description

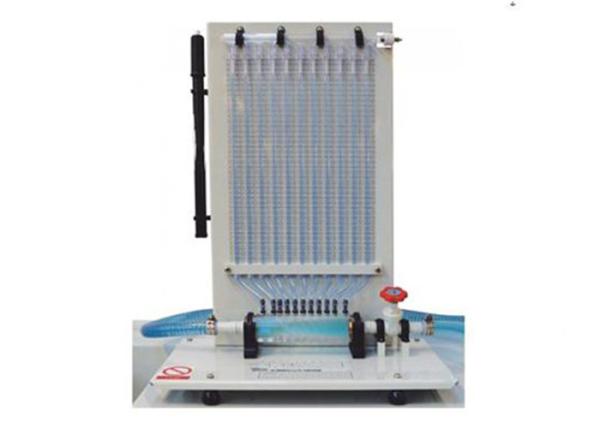

  Didactic device for studying a venturi allowing students to study the operation of a Venturi apparatus, to apply Bernoulli's theorem and to make direct comparisons between the experimental results obtained with the aid of apparatus and theoretical predictions.
  Supplied with a complete instructional manual with practical work (TP).
  Educational holdings
  This teaching equipment makes it possible to carry out the following practical exercises:
  - Measurement of the static pressure profile
  - Comparison of the results with the calculation
  - Measurement of the flow coefficient
  - Application of Bernoulli's theorem
  Supplied with a complete instructional manual with practical work (TP).
  Specifications for tender
  APPARATUS FOR STUDYING A VENTURI

  - The device must allow the observation and the measurement of the variation of the static pressure through a horizontal Venturi. The value of the flow coefficient can be determined for different flow values. Air pressures will be measured using a multimanometer.

  The bench must allow the following pedagogical operations:
  - Measurement of the static pressure profile
  - Comparison of the results with the calculation
  - Measurement of the flow coefficient
  - Application of Bernoulli's theorem

  Technical specifications required:
  - 1 Venturi tube with dimensions: Convergent inlet: 26 mm in diameter, neck: 16 mm diameter, Convergent outlet: 26 mm diameter
  - Manometer tubes made of transparent plastic
  - 1 pipe for the repression
  - 1 hand pump
  - 1 air pressure regulating valve (up to 250 mm of water)
  - 1 water flow control valve (maximum flow: 27 l / min)
  - Adjustable feet for leveling.
  - Dimensions: approx 720 x 650 x 300 mm
  - User and Practical Manual in French

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
