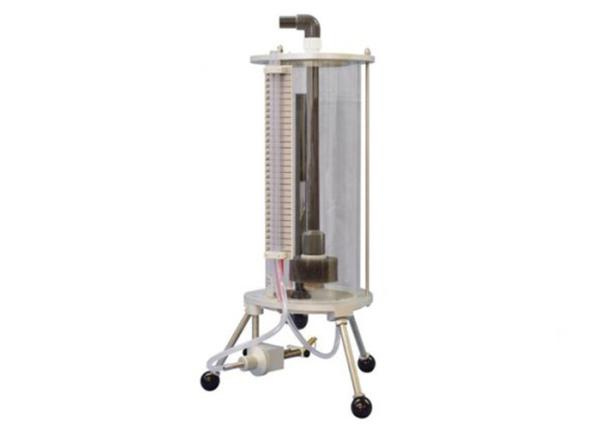

H4 Educational Equipment Technical Teaching Equipment A stopwatchTeaching device for studying a flow through an orifice

• Description
  A didactic apparatus for studying a flow through an orifice for studying a flow of water through a vertically mounted orifice.
  Supplied with a complete instructional manual with practical work (TP).
  Educational holdings
  This teaching equipment makes it possible to carry out the following practical exercises:
  - Determination of contraction and speed coefficients
  - Calculation of the flow coefficient
  - Determination of the actual flow coefficient and comparison with the calculated values.
  - Determination of the different coefficients for different flow rates in order to show the influence of the Reynolds number.
  Supplied with a complete instructional manual with practical work (TP).
  Specifications for tender
  APPARATUS FOR STUDYING FLOWS THROUGH AN ORIFICE

  The bench must allow the following pedagogical operations:
  - Determination of contraction and speed coefficients
  - Calculation of the flow coefficient
  - Determination of the actual flow coefficient and comparison with the calculated values.
  - Determination of the different coefficients for different flow rates in order to show the influence of the Reynolds number.

  Technical specifications required:
  - Cylindrical glass tank with orifice at the bottom of this tank.
  - The water supply of the tank will be done through a diffuser.
  - The vertical jet flows into the bench flow measurement tank.
  - A pitot tube, with traversing device can be positioned anywhere in the jet. A thin-edged blade attached to the Pitot tube will measure the width of the jet and thus determine the contraction coefficient.
  - The pressure under the jet with the pitot tube and the total pressure above the orifice will be indicated by pressure tubes placed next to the tank.
  - Manometric scale 100 mm to 390 mm
  - Maximum load: 365 mm
  - Maximum flow: 13 liters per minute
  - 13 mm Thin Wall Circular Orifice in Aluminum
  - Dimensions: approx 720 mm x 520 mm x 470 mm
  - User and Practical Manual in French
