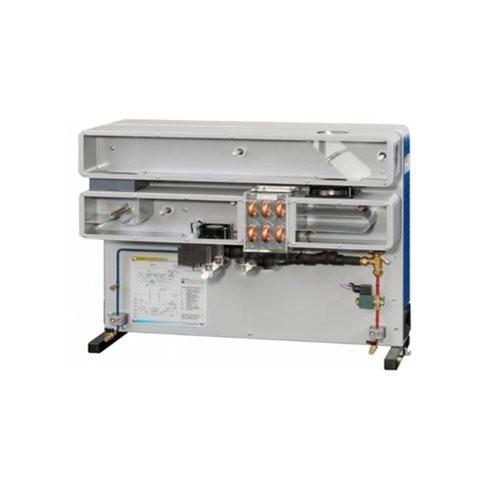

ZM6302 Educational Equipment Technical Teaching Equipment Test benches for the study of air conditioning

• Fonction (s)/Objectifs pédagogiques
   Use of enthalpic air diagram
   Characterization of humidification and dehydration phenomena in an air conditioned environment
  Description :
  Autonomous unit, monoblock, mounted on mobile support frame, treated against oxidation, PVC panel.
  Digital display of temperatures from suitable probes for dry and wet temperatures, paper output of results in the form of curves.
  -1 fan motor assembly, equipped with a manual speed controller .
  -1 conduct of blowing Including :
  - 1 water vapour injector
  - 1 electric heating battery, regulated temperature and adjustable;
  - 1 condensate recovery tray to a graduated container
  - Outlet air flow stabilizer diaphragm
  - 1 control and control cabinet for all parameters (speed controller, heating and cooling powers, parameter measurements...), complete synoptic panel
  Measures
  - air flow by inclined pressure gauge and/or anemometer
  - measurements of dry and wet temperatures at different points :
  - Entrance of air
  - After the heater
  - After it cools down
  - 2 ¼ tower valves
  - 2 pressure gauges
  - 1 adjustable regulator
  - 1 automatic water drain
  - Instrumentation :
  - Electric motor speed controller, manual tachometer;
  - discharge and input manometers
  - air flow (float or diaphragm)
  Digital display temperature: air input and outlet
  H.R. digital display for air input and outlet
  Voltmeter/ammeter
  Wattmeter
  Documentation
  Fluids/ connections
  All connections to workshop utilities

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
