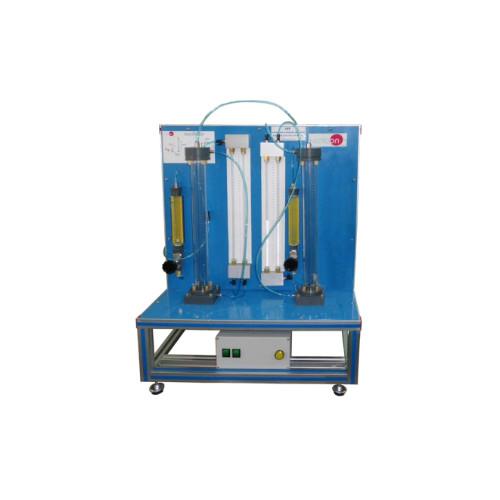

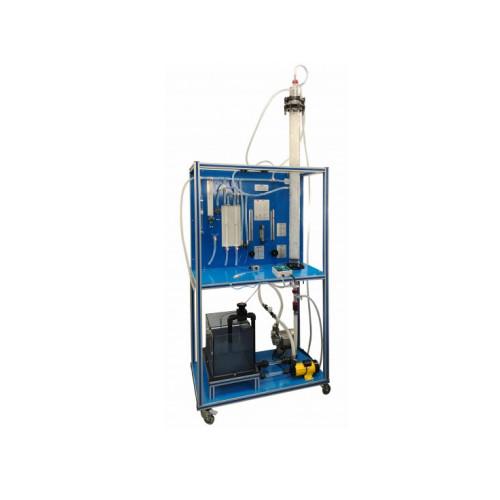

SR6124 Fixed and Fluidised Bed Unit Educational Equipment Fluids Engineering Training Equipment

Specification

investigation of the transformation from fixed bed to fluidised bed

experiments with air and water next to each other

scales on the tanks to measure the height of the fluidised bed

water supply via storage tank with diaphragm pump

volumetric flow rate for air adjustable via valves

flow rate for water adjustable via speed on the diaphragm pump

measurement of pressure loss using electronic, hand-held unit

Technical data

2 tanks

length: 380mm

inside diameter: 44mm

graduation: 1mm

material: PMMA

diaphragm pump (water)

max. flow rate: 1,7L/min

max. head: 70m

diaphragm compressor (air)

max. volumetric flow rate: 39L/min

max. pressure: 2bar

water storage tank: approx. 5,5L

compressed air accumulator: 2L

Measuring ranges

pressure: 0…±140mbar

flow rate: 0,16…1,6L/min (water)

volumetric flow rate: 4,1…33NL/min (air)

height: 25…370mm

230V, 50Hz, 1 phase

230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase

UL/CSA optional

calculated by the integrated microcontroller

• An electronic display on the front panel shows flow rates and pressure drops for all three columns at the same time

• Comes with powerful data logging software

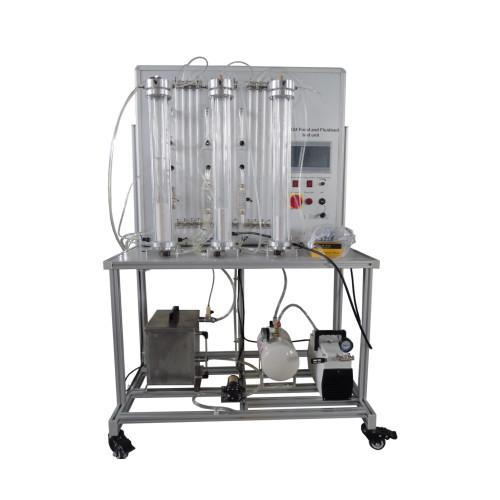

• Three cylindrical columns, one for water and two for air, each column with a diameter of approx.

50mm and height of approx. 550mm

• Complete with a demonstration of liquefaction and how the properties of liquefied particles change

with agitation

• Each column preferably have tapping points and differential pressure sensors

• Powered by universal power adapter with worldwide approvals

Product Details and Warranty

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
