ZE3226 Stepper Motor Trainer Didactic Equipment Electrical Engineering Lab Equipment

Stepper Motor System is an integrated system for in depth studies stepper motor theory and working principles. The system comes with an upright control panel. The stepper motor system is connected via flexible coupling. The control panel comprises of Stepper Motor Driver, Time Delay Contactor, Programmable Logic Control- ler Unit, PLC Input Terminal Unit, I/O Unit, PLC Output Terminal Unit, and all wiring con- nections brought out to 4mm terminals. Con- necting leads with banana plugs facilitate quick and easy connections between the stepper motor system and other control. The stepper motor unit stands independently with its own power input to simulate the frequency of the stepper motor.

The training package based on the most modern electrical drive technology. It teaches all of the skills needed to use electrical drives and infor- mation on their particular features and ad- vantages.

Learning Objectives

Constructing a stepper motor system

Testing and commissioning a stepper drive

Multiple speed controls of stepper motor

Multiple direction controls of stepper motor

Positioning controls of stepper motor

Acceleration and braking ramps

Specifications MAIN SUPPLY MODULE

Leakage Current: 30mA

CAM Switch : 3-Pole

Emergency Stop

Product Details and Warranty

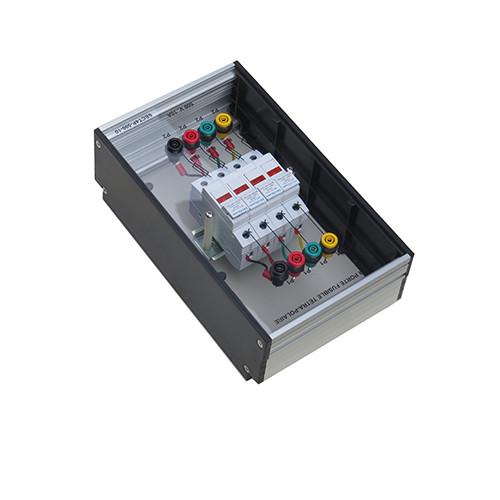

We supply suitable spare pats according to experiment requirement, our products take aluminum structure, A4 paper dimension aluminum and plastic hanging box structure.

We supply 3 years warranty time.

Packaging & Delivery

Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.

Training Room Photo

Company Information

We supply professional educational training equipment and technical teaching equipment, which has been widely applied in Engineering Universities, Polytechnics, Technical Institute, Vocational Schools as well as Industry workforce Development Programs and Training Center. Our products allow students to learn and experiment through valuable hands-on experience, and the technology covered by our training equipment provides knowledge, experiments and didactic skills development that are of critical importance to today´s and tomorrow´s careers.

Photo for Clients Visiting Factory

Service

We supply supply7*24 hours service, customer design service, OEM service, buyer label service. With professional engineers team and sales team, we assure you good product quality.

Certificate

Our products takes ISO9001 product management system.
