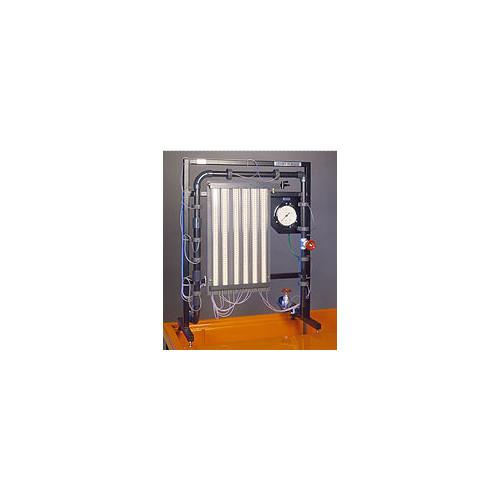

ZF1125A Energy Losses in Bends and Fittings Teaching Equipment Fluid Mechanics Experiment Equipment

[1] determining the pressure conditions in flow through a pipe bend Required Hydraulic Bench FM 110

[2] measurement of static pressure at 28 pressure measuring points along the bend

[3] ten pressure measuring points each on the top and bottom plus four pressure measuring points on each side

[5] 12 tube manometers to displaying the pressures

Technical Specification

Pipe diameter: 19.48mm

Differential pressure gauge: 0 to 1.4bar

Enlargement diameter: 26.2mm

Contraction diameter: 19.48mm

Fittings:

– 45° mitre

– 90°elbow

– short bend

– large bend

– enlargement

– contraction

Manometer range: 0 to 440mm

Number of manometer tubes: 12

Dimensions and Weight

LxWxH: 2220x820x1980mm

Weight: approx. 250kg

Packaging & Delivery
Package details: plastic film+ plastic foam + plywood box with pallet, and for equipment dimension less than 1CBM, we supply plastic film+ plastic foam+ fine carton.

Arrange delivery within 45 days upon receipt of payment.

Please see below photo for detailed package.
