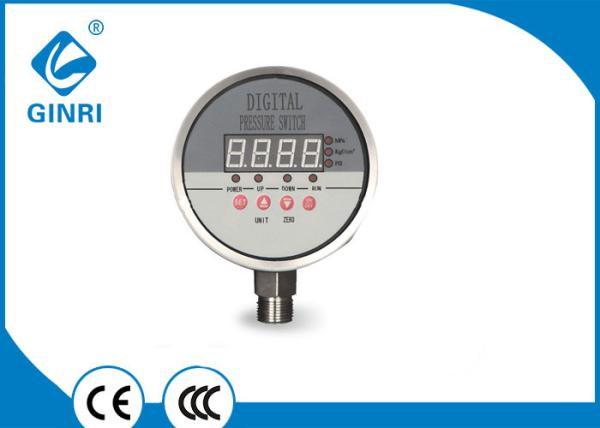

380V Water Pump Pressure Switch Compatible With 316 Stainless Steel Medium

How to set control pressure
(1) Short press (ON/OFF) operation key to close the operation indicator and the pressure control system is turned off.
(2) Set upper/lower limit of control
Short press the SET button once to enter the lower limit setting state (corresponding to the lower limit indicator is on), set the value by (▲) (▼), after setting the lower limit is completed, short press the SET button to enter the upper limit setting, the setting method is the same as above.
(3) After the setting is completed, press the SET button to automatically save the set value to the computer chip (after the parameter is modified, the current parameter setting will be automatically saved if there is no key operation within 5 seconds).
(4) Press (ON/OFF) the operation key again (corresponding to the running indicator light), the motor starts to work.
2. Unit switching method: Short press the (ON/OFF) operation key to turn off the operation indicator. Short press the increase key (▲) to switch the unit between MPa, Kg/cm, and PSI. Turn on the operation indicator after the setting is completed.
3. Zero clear function: Short press (ON/OFF) operation key, turn off the running indicator, long press the down key (▼) for 5 seconds to clear the current pressure value and correct the zero error. Turn on the operation indicator after the setting is completed. (Press switch must not apply pressure when using this function.)

♦ Features

-- 4 digital LED display pressure, Accuracy≤0.5%-- Three pressure units available ( Psi, Kg/cm2 , Mpa)-- Adjustable high & low pressure threshold and delay time-- Adjustable control mode:normal control and reverse control-- Pressure leak and loss protection,secure setting-up

-- Anti-electromagnetic interference design-- Zero clearing with one button

♦ Protective Functions

● Upper limit alarm(high pressure)

● Lower limit alarm(low pressure)

● Pressure leak alarm

● Pressure loss alarm(no pressure)

♦ Typical Applications

• Machine Automation • Engineering Machinery

• Electromechanical Integration Equipment • Pump&compressor

• Hydraulic System • Medical project • Pipeline engineering

♦ Specification

♦ Dimension

Radial mounting

Axial mounting
