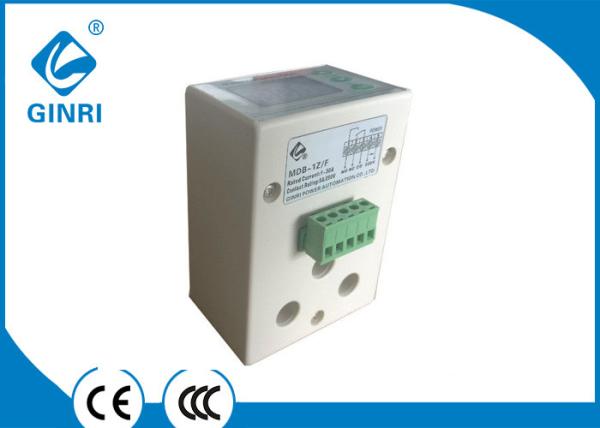

0.1-10A Electronic Overload Relay Compressors motor protection relays
0.1-10A Electronic Overload Relay Compressors motor protection relays
0.1-10A Electronic Overload Relay Compressors motor protection relays
0.1-10A Electronic Overload Relay Compressors motor protection relays
Specifications
Brand Name :
Ginri
Model Number :
MDB-1Z
Certification :
CE
Place of Origin :
China
MOQ :
100Pcs
Payment Terms :
L/C, T/T, Western Union，Paypal
Supply Ability :
50000Pcs per month
Delivery Time :
1-30 days upon order quantity
Packaging Details :
Packed in cartons
Rated Voltage :
380VAC
Operating voltage range :
+10/-15% max. of the rated voltage
Operating current range :
0.1-10A
Protection functions :
Lock rotor
Indicators :
LED indicating current,operation status
Output type :
1 C/O
Description

0.1-10A Electronic Overload Relay Compressors motor protection relays

Description

Diemensions:70*67*98mm

Weight:300g

Protection Degree :IP 20

Output Type: 1 C/O

Contact Capacity: 5A 250VAC/30VDC

Indicators: LED indicating current

Protective Functions : Lock-rotor,Overcurrent,Undercurrent,Phase loss,Phase unbalance

Operating Current Range: 0.1-10A

Rated Supply Voltage : 220VAC,380VAC,50/60Hz

Operating Voltage Range:+10 / -15% Max Of The Rated Voltage

Features

1. Compact modular size with integrative structure

2. Built-in LED and keypad afford a precise,digital setting

3.Three-phase monitoring of short-circuit, locked-rotor,overcurrent,undervurrent, phase loss, phase unbalance

4. Adjustable reset mode:automatic reset or manual reset

5. Adjustable power-on delay

6. 1 C/O contact

Functions Data

Functions Condition & Setting Range Delay Time
Overcurrent

Condition : load current (in) exceeds

setting current (Is),i.e., In Is.
Setting range:as per model

 Def:0.1~60s
Inv:1~5
Undercurrent Condition : load current (In) exceeds
setting current (uc),i.e.,In uc.
Setting range:0~80%*Is		 0.1~60s
adjustable
Lock-rotor
(STALL		 Condition : In Lock-rotor current setting (lr).
Active once motor starting.
Setting range:1.5*Is ~ 10*Is		 0.1~60s
adjustable
Current
unbalance
(BL)

Condition : current unbalance setting unbalance(un)
Setting range:1%~50%

*Unbalance factor (%) = (Imax phase - Iaverage) / Iaverage) x 100%

 0.1~60s
adjustable
Phase loss
(PL)		 Condition : max unbalance is more than 50%
among 3 phase current.
Enable or disable : selectable		 0.1~60s
adjustable

0.1-10A Electronic Overload Relay Compressors motor protection relays

GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
