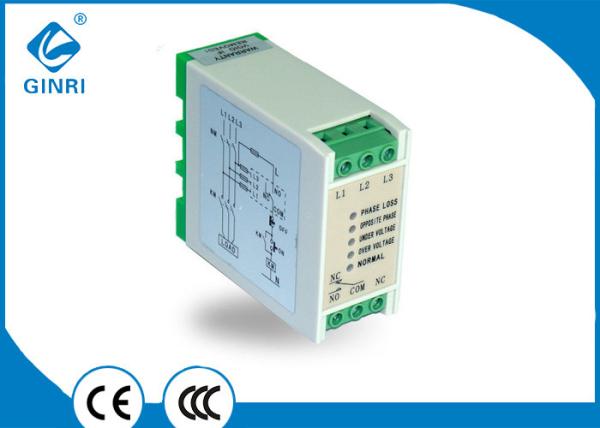

Voltage Monitor 3 Phase Monitoring Relay 220V 380V 440VAC 50/60Hz JVR -380
Voltage Monitor 3 Phase Monitoring Relay 220V 380V 440VAC 50/60Hz JVR -380
Specifications
Brand Name :
GINRI
Model Number :
JVR-380
Certification :
CE
Place of Origin :
China
MOQ :
50Pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000Pcs per Month
Delivery Time :
Within 7 days
Packaging Details :
Voltage relay is standard seaworthy package,1pcs individual box or 5pcs in a middle box, 200pcs per carton. Base quotation is blank package. OEM design is acceptable
Protect :
Phase and voltage
Measuring Circuit :
L1,L2,L3
Output Contact :
1 NO+NC
Contact Capacity :
3A 250VAC
Description

Voltage Monitor 220V,380V 440VAC Three Phase Voltage Protection Relay 50/60Hz JVR-380

♦ Features

-- Compact size

-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance

-- Powered by the measuring circuit

-- 1 C/O contacts

-- 5 LEDs for status indication

♦ Protective Functions

-- Phase sequence

-- Phase loss

-- Overvoltage

-- Undervoltage

-- Phase unbalance

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

Type JVR-380
Measuring circuit L1,L2,L3
Rated voltage

220VAC,380VAC ,440VAC

460VAV,480VAC,50/60Hz
Monitoring functions phase sequence, phase loss, overvolatege, undervoltage, phase unbalance
Voltage setting range

Type suffix overvoltage undervoltage

blank +15% -15%

A +10% -10%

B +12.5% -12.5%

C +15% -12.5%

T Customized Customized
Indicators phase sequence, phase loss, overvolatege, undervoltage, and normal
Output contacts 1 C/O
Contact capacity 3A ,250VAC
Dimensions (H x W x D) 68×30×76mm
Mounting DIN rail

Voltage Monitor 3 Phase Monitoring Relay 220V 380V 440VAC 50/60Hz JVR -380
