Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault
Specifications
Brand Name :
GINRI
Model Number :
WDB-1F2
Certification :
CE
Place of Origin :
China
MOQ :
50Pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000Pcs per month
Delivery Time :
5-8 days
Packaging Details :
1 relay in 1 box
Contact capacity :
3A 380VAC
Output contacts :
1 C/O for trip,1 C/O for alert
Color :
Black
Voltage :
220VAC
Description

Black Electronic Overload Relay Motor Protection Relay Phase Loss Earth Fault

♦ Features

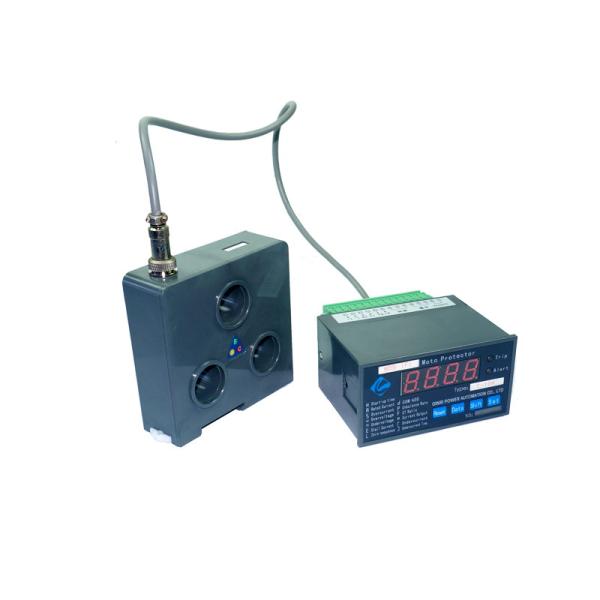

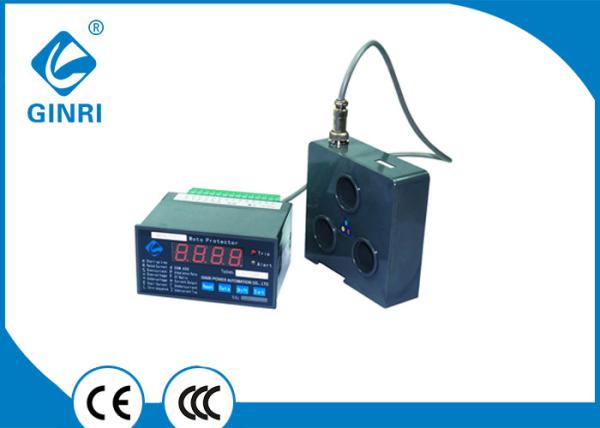

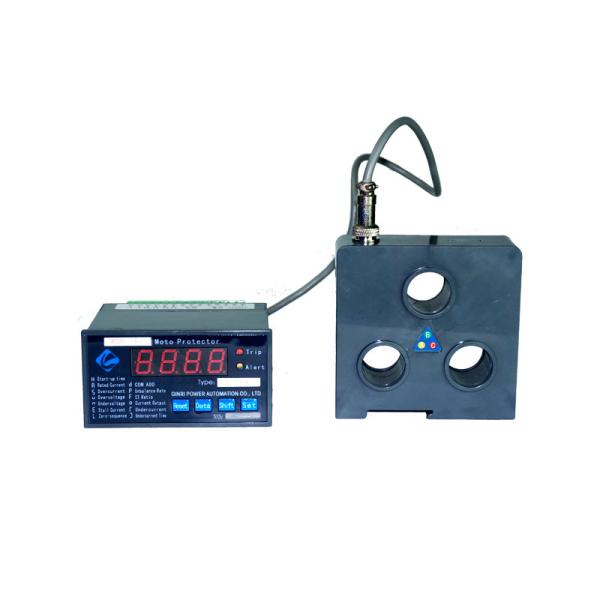

-- Separate structure,LED part panel mounted and CT part screw fixing

-- Built-in LED and keypad afford a precise,digital setting

-- Three-phase monitoring of short-circuit, locked-rotor,overcurrent, undercurrent, phase loss, phase unbalance,overvoltage,undervoltage

-- Earth fault (should couple with ZCT)

-- Fault recording

-- RS-485 communication port (optional)

-- 4-20 mA analog output (optional)

-- 2 C/O output contacts, one for trip,one for alert

♦ Protective Functions

-- Short-circuit

-- Locked-rotor

-- Overcurrent

-- Undercurrent

-- Phase loss

-- Phase unbalance

-- Overvoltage

-- Undervoltage

-- Earth fault

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Technical data

Type WDZ-1F2
Rated voltage 220VAC,380VAC ,50/60Hz
Current range 1-10A,5-50A,10-100A,20-200A,80-400A,400-600A,600-800A
Protective functions short-circuit, locked-rotor, overcurrent, undervurrent, phase loss, phase unbalance,overvoltage,undervoltage, earth fault
Optional functions

RS-485 communication port

4-20 mA analog output
Indicators LED indicating voltage,current,operation status
Output contacts 1 C/O for trip,1 C/O for alert
Contact capacity 3A 380VAC
Dimensions (H x W x D) 101×54×77mm(LED part)
Mounting

LED part panel mountedand CT part rail monting
