Input Output 40 Pole IDC Interface Module Breakout Board Male DC24V
Input Output 40 Pole IDC Interface Module Breakout Board Male DC24V
Specifications
Brand Name :
GINRI
Model Number :
JR-40TBC
Certification :
CE
Place of Origin :
CHINA
MOQ :
50Pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
50000Pcs per month
Delivery Time :
5-8 working days
Packaging Details :
1 board in small box ,50Pcs in middle box
Input and output :
40
Apply :
DC motors
Current :
1A
Voltage :
DC24V AC125V
Description

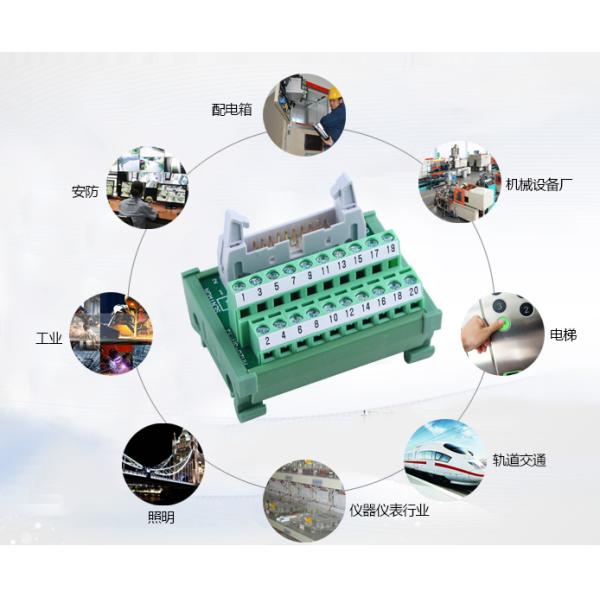

Input Output 40 Pole IDC Interface Module Breakout Board Male DC24V

Principle: When the relay coil is applied with the required voltage, the armature is attracted to the magnet, and the armature presses the contact tab to turn the contact on, off or switch the controlled circuit. When the coil voltage of the relay is disconnected, the armature and the contact piece return to their original positions.

Function: The general relay has 2 pairs or 4 pairs of normally open normally closed contacts. When the coil is closed, the normally open and normally closed, normally closed and normally open. If, at this time, the normally open normally closed contact is connected to other Controlling the line serves to close or disconnect other lines.

These ribbon cable terminal block interface modules mount on stanard DIN rail and accept 10-position connector to 64-position connector. Ribbon Cable interface modules are available with either fixed wiring or pluggable terminal blocks.

♦ Features

-- Support most of PLC output interface-- Standard DIN rain mounted

-- High quality connectors with excellent stability

-- Models available with Phillips screw, slotted screw

-- Greatly savings in wiring and wiring Work

-- Easy for inspection and maintenance

-- Compact slim 49mm width

♦ Typical Applications

• Micro-controller • PLC control • Servo System

• Electro-magnetic valve • DC Motors • CNC machine

• Home intelligent control

♦ Technical data

Model JR-40TBC
Connector type IDC(MIL)
I/O poles 40
Wiring method

Euro terminal (slotted screws)

*Japanese terminal (Phillips screws) can be customized
Rated current 1A
Rated voltage DC24V
Insuration resistance 100MΩ min. (at 500VDC)
Dielectric strength 500VAC 1min
Ambient operating temperature -20℃~+55℃
Applicable wires AWG 22-16(0.3~1.25mm2),6~7mm
Suitable Uses Panasonic FPΣ PLC
Dimensions(LxWxH) 49×46mm
Mounting DIN rail
