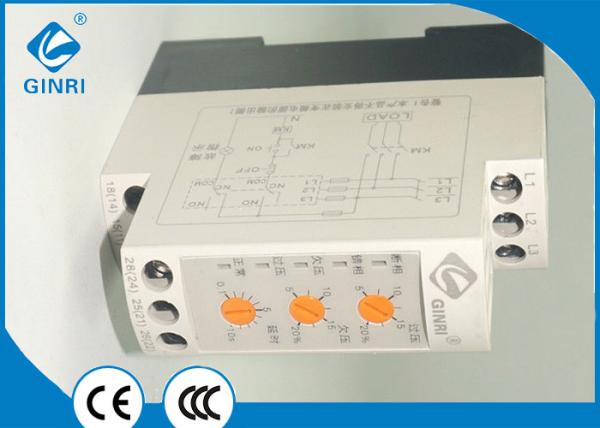

480VAC Neutral Loss Three Phase Voltage Monitoring Relay Adjustable Delay Time
480VAC Neutral Loss Three Phase Voltage Monitoring Relay Adjustable Delay Time
480VAC Neutral Loss Three Phase Voltage Monitoring Relay Adjustable Delay Time
480VAC Neutral Loss Three Phase Voltage Monitoring Relay Adjustable Delay Time
Specifications
Brand Name :
Ginri
Model Number :
JVRD-380W
Certification :
CE
Place of Origin :
China Wenzhou
MOQ :
20Pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Delivery Time :
2-5days
Packaging Details :
standard packing
input circuit :
L1,L2,L3 or L1,L2,L3,N
rated voltage :
400VAC,440VAC,480VAC,50/60HZ
Monitoring functions :
Phase sequence,phase loss,overvoltage,undervoltage,
Phase unbalance threshold :
15% fixed
Delay time for overvoltage and undervoktage :
5-8s Fixed(0.1~10s adjustable for JVRD-xxxW)
Delay time for phase loss :
1-2s fixed
Description

480VAC Neutral Loss Three Phase Voltage Monitoring Relay Adjustable Delay Time

JVRD voltage phase sequence multi-function protector (three-phase AC protection relay) instruction manual
Protection features: ● Phase protection ● Misphase protection ● Voltage imbalance protection ● Overvoltage protection ● Undervoltage protection
Dimensions: 79H×23W×79D
caveat! This product is generally the power supply side of the three-phase power supply sampling, shall not be installed in the output side of the inverter current!
-JVRD series voltage phase sequence multi-function protector (also known as three-phase power monitor, phase sequence protector, over voltage protection device, etc.) is mainly used for AC 50/60Hz, rated voltage below 460V, industrial three-phase 220V, 380V, 440V, 460V and other voltage levels of various fault detection, the three-phase input power supply voltage is too high, voltage is too low, lack of phase, reverse phase (phase sequence), three-phase voltage imbalance, etc. to provide protection relay

-products widely used For air compressors, motors, distribution boxes, pumps, oil pumps, central air conditioning units, electric control boxes, power distribution cabinets, cranes, etc., such as central air conditioning compressor protection, power monitoring of various elevators, water pump, oil pump protection phase The reverse phase protection is an indispensable protection product that maintains the normal working voltage of the equipment during operation of industrial equipment
Installation method : The protector base adopts rail type, and has two M4 screw holes structure. It is directly installed independently or HT35 rail is installed (if direct installation is adopted, the bottom two attachments of the product must be pushed out forcefully).
Indicator lights : 5 indicators to indicate: normal, missing phase (voltage three-phase unbalanced), reverse phase, overvoltage, undervoltage.
Overall dimensions : 79mm x 23mm x 79mm.
Contact form : two open and two closed


Features

  • Compact modules size
  • Three-phase monitoring of phase sequence,phase loss,over and undervoltage and phase unbalance
  • Adjustable over and undervoltage threshold and delay time(for JVRD-xxxW)
  • Neutral loss monitoring (for JVRD-xxxN&JVRD-NK)
  • Powered by the measuring circuit
  • 2C/O contacts
  • Max 5 LEDs for status indication

Protective Function

  • Phase loss(Failure)
  • Phase sequence(reversal)
  • Phase unbalance(Asymmetry)
  • Undervoltage
  • Overvoltage
  • Neutral loss

Applications

  • Pumps
  • Fans
  • Refrigeration units
  • Blowers
  • Motors
  • Compressors
  • Lifts,Elevators
  • Cranes
  • Mining excavators and conveyors

ModelJVRD
Input circuit=measuring circuitL1,L2,L3 or L1,L2,L3,N
Rated voltage(line voltage)220VAC,380VAC,400VAC,440VAC,460VAC,50/60HZ
Monitoring functionsPhase sequence,phase loss,overvoltage,undervoltage,phase unbalance,neutral loss
Phase unbalance threshold15% fixed
Delay time for overvoltage and undervoltage

5-8s fixed
0.1~10s adjustable for JVRD-xxxW)

Delay time for phase loss,phase unbalance,phase sequence1-2s fixed
Reset time0.5s fixed
Indicatorsphase sequence,phase loss,overvoltage,undervoltage,normal
Output contacts1C/O(1C/O&1NC for 1NC for 3-phase 4wire)
Contact capacity6A,259VAC(resistive load)
Dielectric strength＞2KVA 1min
Weight130g
Dimension(HxWxD)79x23x29mm
MountingDin Rail
