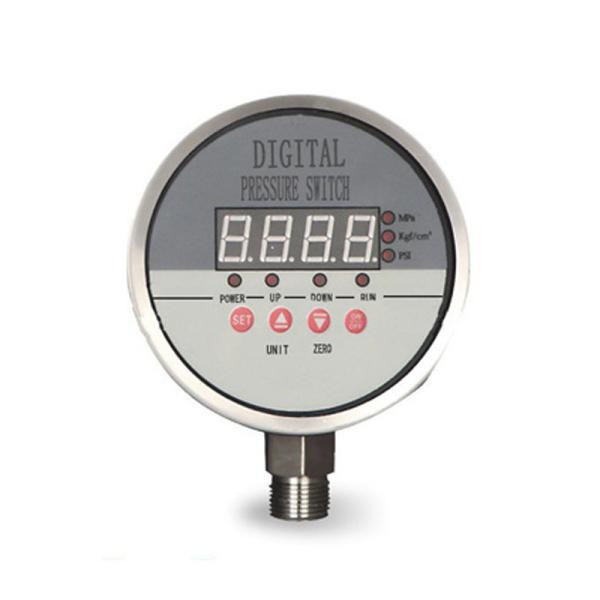

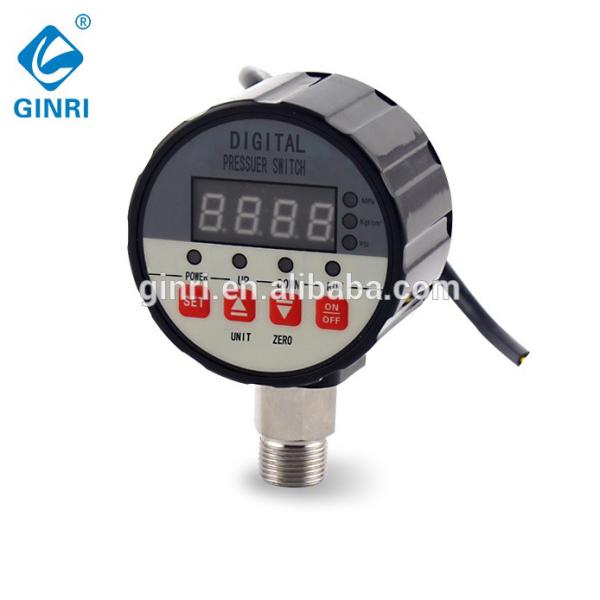

Micro Water Pressure Switch Digital / Air Pressure Switch Controller 0-0.2Mpa 0.5Mpa
Micro Water Pressure Switch Digital / Air Pressure Switch Controller 0-0.2Mpa 0.5Mpa
Micro Water Pressure Switch Digital / Air Pressure Switch Controller 0-0.2Mpa 0.5Mpa
Micro Water Pressure Switch Digital / Air Pressure Switch Controller 0-0.2Mpa 0.5Mpa
Specifications
Brand Name :
GINRI
Model Number :
DPR-S80/90
Certification :
CE
Place of Origin :
China
MOQ :
20Pcs
Payment Terms :
L/C, Western Union, T/T,Paypal
Supply Ability :
20000Pcs per month
Delivery Time :
within 7 days
Packaging Details :
1 pressure switch in 1 individual box and total in big box
Pressure range :
0-0.2Mpa 0.5Mpa
overload pressure :
120%
alarm type :
relay signal
measurement medium :
oil water gas
Description

GINRI Micro Pressure Switches Digital Water Air Pressure Controller 0-0.2Mpa 0.5Mpa

♦ Features

-- 4 digital LED display pressure, Accuracy≤0.5%

-- Three pressure units available ( Psi, Kg/cm2 , Mpa)

-- Adjustable high & low pressure threshold and delay time

-- Adjustable control mode:normal control and reverse control

-- Pressure leak and loss protection,secure setting-up

-- Anti-electromagnetic interference design

-- Zero clearing with one button

♦ Protective Functions

● Upper limit alarm(high pressure)● Lower limit alarm(low pressure)● Pressure leak alarm● Pressure loss alarm(no pressure)

♦ Typical Applications

• Machine Automation • Engineering Machinery• Electromechanical Integration Equipment • Pump&compressor• Hydraulic System • Medical project • Pipeline engineering

♦ Specification

Pressure range

General type:0~1, 2, 3, 4, 5, 10, 20, 30, 40, 50, 60Mpa

Micro type:0~0.2, 0.5Mpa

Negative type: -0.1~0.1Mpa
Pressure unit MPa,kgf/cm2,PSI adjustable
Overload pressure 150%
Accuracy grade ±0.5%FS
Power supply 24VDC,220VAC,380VAC
Alarm point Full range can be set
Alarm type relay signal
Load capacity 380V 3A ,220V 5A ,24V 5A
Sampling frequency 10 times/sec
Operating temperature -20℃-80℃
Compensation Temperature -10 ~60 ℃
Measurement medium Gas, water, oil (compatible with 316 stainless steel)
Electric protection Short-circuit protection, reverse polarity protection, anti-electromagnetic interference design
Pressure connector M20*1.5 G1/2,G1/4 (other connector could be customized)
Connector material 304SS
Optional module RS485 Modbus Communication protocol
Dial diameter 100mm
Shell material 304SS
Mounting methods Axial direction or radial direction optional
Weight 0.6Kg
