Compact DC Under Voltage Three Phase Relay , DC Voltage Controlled Relay
Compact DC Under Voltage Three Phase Relay , DC Voltage Controlled Relay
Compact DC Under Voltage Three Phase Relay , DC Voltage Controlled Relay
Compact DC Under Voltage Three Phase Relay , DC Voltage Controlled Relay
Specifications
Brand Name :
GINRI
Model Number :
DVRD
Certification :
CE
Place of Origin :
China
MOQ :
10Pcs
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
20000Pcs per month
Delivery Time :
5-8 working days
Packaging Details :
1 relay in individual box
Product name :
Three Phase Voltage Relay
Rated Voltage :
DC36V
Size :
Mini
frequency :
50/60Hz
Description

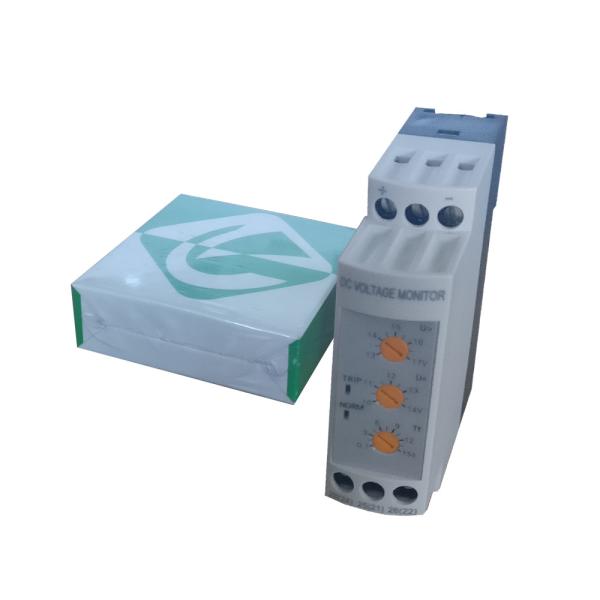

GINRI Voltage Monitoring Relay DC Over/Under Voltage Relay DVRD

Features:

  • Compact modular size
  • DC circuit monitoring of over-and undervoltage
  • Adjustable over-and undervoltage threshold
  • Adjustable trip delay time
  • Powered by the measuring circuit
  • 2C/O contacts
  • 2 LEDs for status indication

Protective Functions

  • DC overvoltage
  • DC undervoltage

Applications

  • DC cabinet
  • Battery
  • Electric control system

Model DVRD
Input circiut =measuring circuit DC supply
Rated voltage DC12V.DC24V.DC36V,DC48V
Monitoring functions Overvoltage,undervoltage
Voltage setting range
Rated voltage undervoltage overvolatge
DC12V 10-14V 13-17V
DC24V 20-28V 26-34V
DC38V 30-42V 39-51V
DC48V 40-56V 52-68V

Tripping delay time 0.1~15s adjustable
Voltage hysteresis 3-5% fixed
Reset delay time 100ms
indicators normal,trip
Output contacts 2C/O
Contact capacity 6A,250VAC/30VDC(resistive load)
Degree of protection IP20
Working conditions -25℃~65℃,≤85%RH,non-condensing

Mechanical

durability

 1000000 cycles
Dielectric strength >2KVAC 1min
Weight 130g
Dimension(HXWXD) 79X23X79mm
Mounting Din rail

Compact DC Under Voltage Three Phase Relay , DC Voltage Controlled Relay

When all the appliances are in use, the grid voltage is too high or too low, and both industrial equipment and household appliances have a rated voltage. If this voltage is exceeded, the insulation strength and withstand voltage of the appliance will be exceeded, and the appliance will heat up, break down, burn out or even catch fire. At present, due to the stolen goods of the zero line, equipment aging, technical failures, human faults, natural disasters, power outages, and other reasons, the voltage is unstable, and the voltage is too low, causing a large number of electrical appliances in large areas to be burnt and burned. People have suffered heavy losses, and there are no claims, and the work of the people and the people has been followed. The overpressure, overpressure and undervoltage protectors should be added to prevent electrical fires and protect life and property.
