64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 And T30 FAX 1U Size
Specifications
Brand Name :
V-SOL
Model Number :
IAD3064
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 pcs/day
Delivery Time :
15 days
Packaging Details :
Carton
Product :
64 FXS Analog VoIP Gateway
Protocol :
SIP v2.0, RFC3261, IMS
LAN :
3* 10/100Mbps
Voice Port :
64
Interface Type :
RJ45
Compatiability :
NGN/IMS, Asterisk, Freeswitch
Description

64 FXS Analog VoIP Gateway Support SIP RFC3261 T38 and T30 FAX​

Product Description

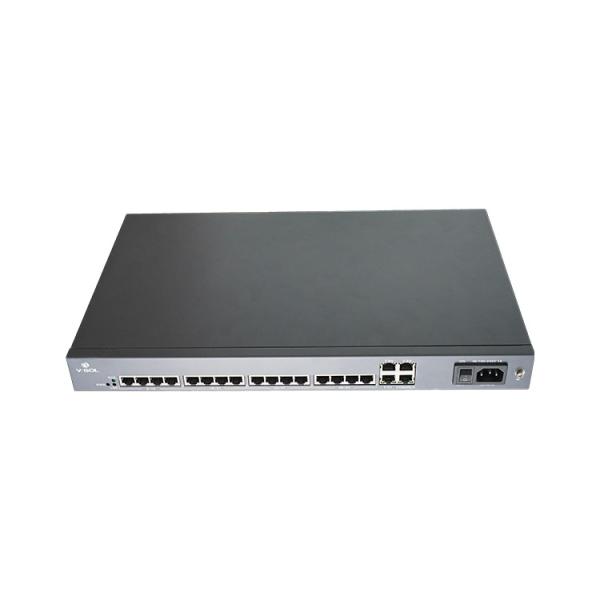

IAD3064 is a highly-integrated gateway which provides up to 64 FXS ports in 1U size. Users can easily connect their analog phones, fax machines and PBX systems via standard voice interface. IAD3064 supports the standard SIP protocol and it's compatible with leading IMS/NGN platform and SIP-based IP Phone system. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Key Features

  • 64 FXS ports, 2 LAN 1 WAN
  • Support SIP, IMS
  • T.38 Fax, Passthrough
  • Supplimentary services
  • Interoperable with leading softswitches, IP PBXs and SIP servers

Application

Specifications

Technical Specifications:
System power supply: Please see the nameplate on the device
Ambient temperature:-10 ~ +50℃
Ambient humidity:10% ~ 90%(non-condensing)
Store temperature:-30 ~ +60℃
Store humidity:10% ~ 95%(non-condensing)

Product Overview

Models

Dimension

(L x W x H)

 Power Power Consumption Weight(without Power Adapter)
IAD3008 250mm×150mm×45mm DC12V, 2A ≤20W About 0.7kg
IAD3008LC 250mm×200mm×45mm 90~260VAC ≤20W About 1kg
IAD3016 440mm×200mm×45mm 90~260VAC ≤25W About 3kg
IAD3032 440mm×200mm×45mm 90~260VAC ≤35W About 3.3kg
IAD3048 440mm×200mm×45mm 90~260VAC ≤40W About 3.5kg
IAD3064 440mm×200mm×45mm 90~260VAC ≤60W About 4.5kg
IAD3128 440mm×200mm×45mm 90~260VAC ≤120W About 5kg

Features

Parameters Software Features
VOIP

– Support SIP protocol (IMS compatible)

– Support primary and secondary sip server to automatic switch

– Support voice coding: ITU-T G.711A/G.711U/G.723.1(5.3K/6.3Kbit/s)/G.729

– Support echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

– Support 10 ~ 180ms adjustable delay jitter

– Support call routing. Digit map

– Support the DSP gain can be adjusted, -5dB ~ + 10dB

– Support caller ID. DTMF and FSK

– Support multi-party conferencing, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service

– Support high/low speed fax/modem. T.30 Transparent, T.30 Bypass, and T38 fax

– Support in band/ rfc2833/rfc2198/info, md5 authentication

– Integrate heartbeat function and support active/standby call agent

– Support dial route IP. Calls between two IADs is supported without a SIP server

– Support IAD Expanding. One master and two slave

– Support local polyphonic ringtone
VLAN – Support VLAN
QoS

– Support TOS

– Support DSCP
L3

– Support IPv4

– Support DHCP/PPPoE/Statics

– Support NAT

– Support DNS
Network Protocol TCP/IP, UDP, RTP/RTCP, ARP, FTP/TFTP, HTTP, HTTPS, Telnet, ICMP, NTP/SNTP, DHCP Server/Client etc.
Performance Call loss: < 0.01%
Security

– Support firewall

– Support SIP attack prevention
Management

– Support web

– Support IVR

– Support cli

– Support telnet

– Support SSH

– Support upgrade firmware remotely or online
