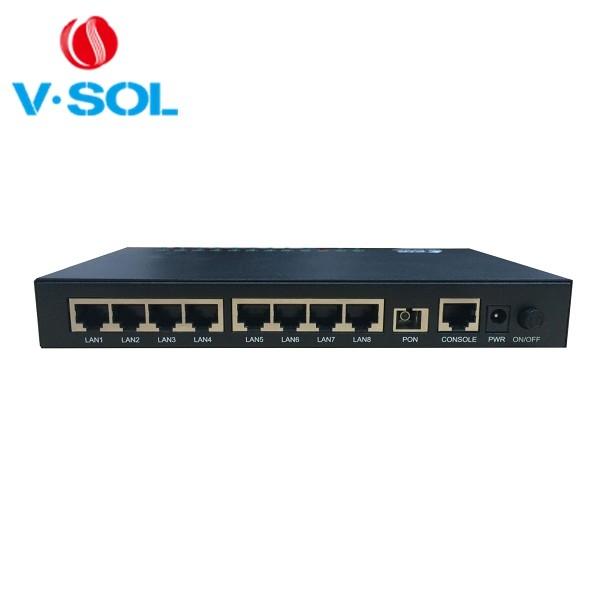

VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch
VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch
Specifications
Brand Name :
VSOL
Model Number :
V2808PD-ZG
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
1000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product :
8 FE Reverse PoE GPON ONT
Technical Spec. :
1GPON + 8FE
PON :
GPON Class B, SC single mode
LAN Interfaces :
8 x 10/100Mbps Auto-negotiation RJ45 ports
Connector Type :
SC/UPC
O&M :
WEB/TELNET/OAM/OMCI
Description

VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch

Introduction

V2808PD-ZG(1*GPON+8FE(PD POE)) ONT is designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is support GPON model, which has high performance, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. Its GPON model is fully compliant to ITU-TG.984.x.

VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch

VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch

Key Features

  • Uplink Mode: Bridging and Routing mode
  • Access Rule: ACL, Spanning Tree
  • O&M: WEB/TELNET/OAM/OMCI
  • Unified network management of VSOL OLT

Interface Parameter

PON
•1GPON port(GPON Class B+)
•SC single mode, SC/UPC connector
•TX optical power: 0～+4dBm
•RX sensitivity: -27dBm
•Overload optical power: -8dBm
•Transmission distance: 20KM
•Wavelength: TX 1310nm, RX1490nm
LAN 8 x 10/100Mbps Auto-negotiation RJ45 ports

Function Data

Basic
•Support MPCP discover&register
•Support authentication Mac/Loid/Mac+Loid
•Support Triple Churning
•Support DBA bandwidth
•Support auto-detecting, auto-configuration, and auto firmware upgrade
•Support authentication SN/Psw/Loid/Loid+Psw
Alarm
•Support Dying Gasp
•Support Port Loop Detect
•Support Eth Port Los
LAN
•Support Port rate limiting
•Support Loop detection
•Support Flow control
•Support Storm control
VLAN
•Support VLAN tag mode
•Support VLAN transparent mode
•Support VLAN trunk mode(max 8 vlans)
•Support VLAN 1:1 translation mode(max 8 vlans)
•Auto VLAN detection
Multicast
•Support IGMPv1/v2,IGMP Snooping
•Max Multicast vlan 8
•Max Multicast Group 64
QoS Support 4 queues,SP and WRR and IEEE802.1p
L3
•Support IPv4,DHCP/PPPOE/Static IP and NAT
•Support Static route

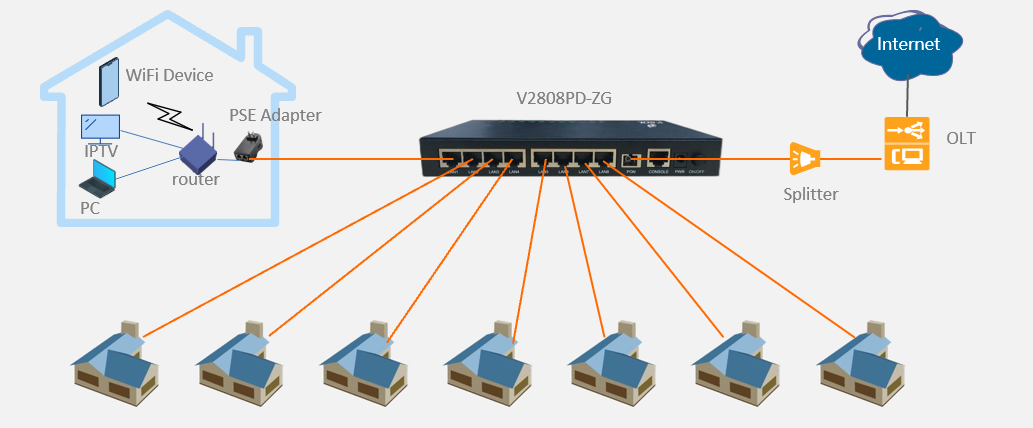

Application

VSOL V2808PD-ZG GPON PoE ONT 8FE With Reverse PoE Layer 2 Ethernet Switch
