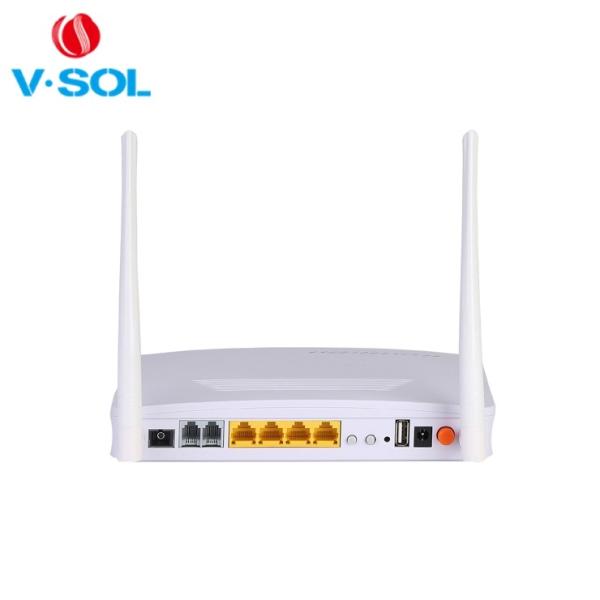

XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB
XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB
XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB
XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB
Specifications
Brand Name :
V-solution
Model Number :
HG326RG
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
10000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product name :
XPON Router with VoIP
Type :
GPON EPON ONT
Application :
FTTH FTTB FTTX Network,FTTO(Office)
Ports :
1 GE + 2POTS + USB + 2.4G Wifi
Wavelength :
Tx 1310nm,Rx 1490nm
Voice :
2xPOTS, RJ11 Connector
Power supply :
EU,etc.for your choose
Power consumption :
<=10 Watt
Description

HG326RG GPON ONT GPON EPON With 1GE + 2POTS + WiFi + USB ONU Terminal

Product Description

HG326RGG G/EPON 1GE+3FE/4GE+2POTS+WiFi+USB ONU support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.

HG326RG G/EPON 1GE+3FE/4GE+2POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

GPON/EPON 1GE+3FE+2POTS+WiFi+USB ONU

XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB

Application

SMEs, Enterprise, FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance

XPON GPON EPON ONT Router HG326RG With 1GE 2POTS WiFi USB

Specifications

Technical item HG326RG
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Wavelength:Tx1310nm,Rx 1490nm

SC/UPC connector

Receiving saturation:≥-8dBm

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: multiple SSID

Channel:13

Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM
POTS interface

2 FXS, RJ11 connector

Support: G.711/G.723/G.726/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay

Line testing according to GR-909
USB interface USB 2.0
LED 13, For Status of PWR,PON ,LOS,WAN,WiFi,FXS1~2,ETH1~4,WPS,USB.
Operating condition

Temperature: 0℃～+50℃

Humidity: 5%～90%(non-condensing)

Storing

condition

Temperature : -30℃～+75℃

Humidity :5%～90%(non-condensing)
Power supply DC 12V,1/1.5A
Power consumption ≤10W
Dimension 205mm×140mm×37mm(L×W×H)
Net weight 0.34Kg

Order Information

Product model Product specification Chipset RAM
HG326RG 1xG/EPON+1GE+3FE+2POTS+WiFi+USB Realtek 128MB
