G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
Specifications
Brand Name :
V-solution
Model Number :
V2804N
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negoticable
Payment Terms :
Negociable
Supply Ability :
10000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product name :
G/EPON 1GE+3FE+2.4G WiFi+USB
PON :
EPON PX20+ and GPON Class B+
Connector :
SC/UPC
Wavelength :
Tx1310nm,Rx 1490nm
Transmission distance :
20KM
Network :
1*GE+3*FE
WiFi :
IEEE802.11b/g/n, 2.4G
Voice :
/
Power supply :
DC 12V/1.5A
Power consumption :
<10W
Description

G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution

Product Description

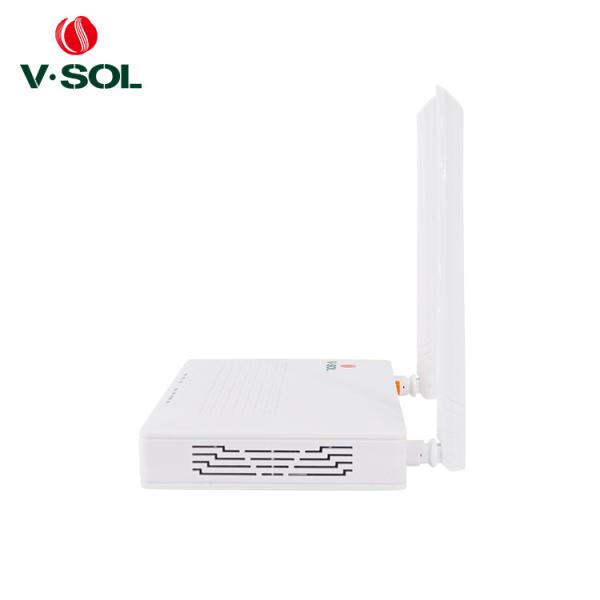

V2804N G/EPON 1GE+3FE+WiFi+USB ONU support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function.

V2804N G/EPON 1GE+3FE+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.SFP with SC/PC Connector Transceiver.

G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution

G/EPON 1GE+3FE+WiFi+USB ONU

Key Features

  • Dual Mode (can access GPON/EPON OLTs).
  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Integrated OAM remote configuration and maintenance function.
  • Support rich QinQ VLAN functions and IGMP Snooping multicast features.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
  • Support 802.11n WiFi(2T2R) function.
  • Support NAT, Firewall function.
  • Support IPv4 and IPv6 dual stack.

Specifications

Technical item V2804N
PON interface 1 G/EPON port (EPON PX20+ and GPON Class B+)
Wavelength: Tx1310nm, Rx 1490nm
SC/UPC connector
Receiving saturation:≥-8dBm
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
LAN interface 1 x 10/100/1000Mbps and 3x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps
2T2R,2 external antenna 5dBi
Support: multiple SSID
Channel:13
Modulation type: DSSS,CCK and OFDM
Encoding scheme: BPSK,QPSK,16QAM and 64QAM
USB interface USB 2.0
LED PWR, PON, LOS, WAN, WiFi, FXS1~2, ETH1~4, WPS, USB
Operating condition Temperature: 0℃～+50℃
Storing condition Humidity: 5%～90%(non-condensing)
Temperature : -30℃～+75℃
Humidity :5%～90%(non-condensing)
Power supply DC 12V,1/1.5A
Power consumption ≤10W
Dimension 205mm×140mm×37mm(L×W×H)
Net weight 0.34Kg

Application

FTTO (office), FTTD (Desk), FTTH(Home), SOHO, video surveillance and others

G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution

Packing Contents

G/EPON DUAL MODE ONU 1 G/EPON+1GE+3FE+ USB+ Wi-Fi 802.11b/g/n(2T2R) for FTTx Solution
