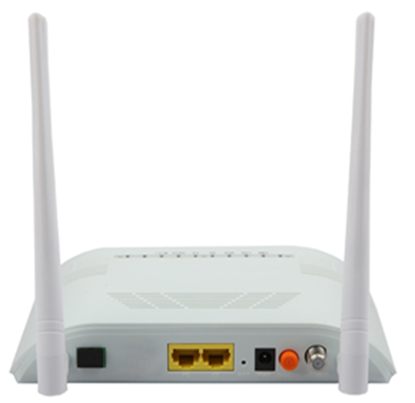

Network EPON ONU WIFI Optical Network Termination Unit With RF CATV
Network EPON ONU WIFI Optical Network Termination Unit With RF CATV
Network EPON ONU WIFI Optical Network Termination Unit With RF CATV
Network EPON ONU WIFI Optical Network Termination Unit With RF CATV
Specifications
Brand Name :
V-solution
Model Number :
V2802EWT
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
10000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product :
1GE +1FE + WiFi + CATV EPON ONU
PON :
EPON PX20+ and GPON Class B+
LAN :
1xGE and 1xFE auto adaptive Ethernet interfaces
WLAN :
2T2R,2 external antenna 5dBi
CATV interface :
1550±10nm
Weight :
0.29
Description

V2802EWT Epon Onu Networking Terminal Modem Equipment WIFI With RFCATV​

Product Description

V2802ETW EPON ONU with 1GE+1FE+WiFi+CATV meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products. It is based on the mature stable, cost-effective Gigabit EPON technology, and has high ratio of performance to price, the technology of Layer 2/3, integrated CATV and configuration flexibility. requirements and other specifications.

1GE +1FE + WiFi + CATV EPON ONU​

Network EPON ONU WIFI Optical Network Termination Unit With RF CATV

Key Features

  • Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
  • Full compliance to IEEE 802.3ah specification & OAM function.
  • Support 802.11n 2T2R speed up to 300Mbps.
  • Support rich VLAN, DHCP Server and IGMP snooping multicast feature.
  • Advantage traffic management
  • Advanced Dynamic Bandwidth Allocation (DBA)
  • The WAN port supports bridge or router mode.
  • Advanced L2 features QinQ VLAN & QoS support.
  • Support NAT, Firewall function.
  • Support Console/ Telnet/ NMS management interface for ease of operation and maintenance.
  • Support 2K MAC address table.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

Application

Specifications

Technical item 1GE+1FE+WiFi+CATV
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-28dBm, Saturability: -8dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
Wavelength Tx1310nm,Rx 1490nm and 1550nm
Optical interface SC/APC connector(signal fiber with WDM)
LAN interface 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WiFi interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: multiple SSID

Channel:13

Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM
CATV

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz, RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
LED 7, or Status of POWER,LOS,PON,GE,FE,WiFi,CATV
Operating condition

Temperature: 0℃～+50℃

Humidity: 10%～90%(non-condensing)

Storing

condition

Temperature: -30℃～+70℃

Humidity: 10%～90%(non-condensing)
Power supply DC 12V/1A
