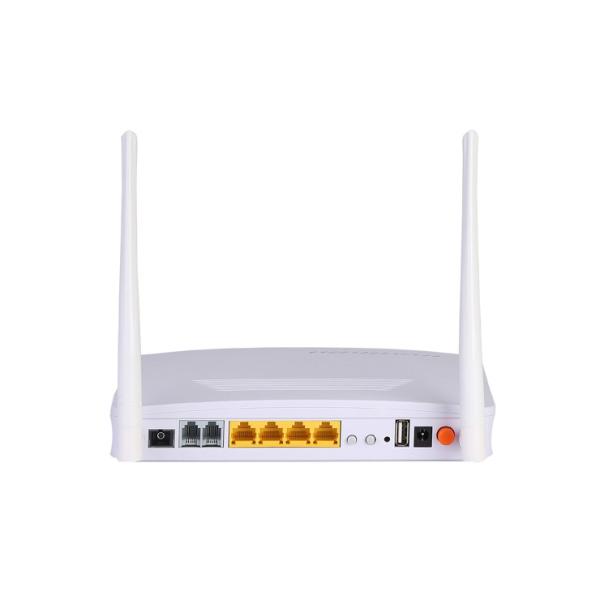

2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU
2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU
2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU
2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU
Specifications
Brand Name :
V-solution
Model Number :
HG326RGG
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
10000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product name :
wireless Voip router
Uses :
enterprise, soho office
WLAN :
4 GE , 2.4G wifi
Upstream :
GPON, EPON
VoIP :
SIP RFC3261
POTS :
2xRJ11, Support T38 FAX
Description

Dual Mode ONU 2x FXS Telephone Port Wifi Router Voip Router gpon hGU

Product Description

G/EPON 1GE+4GE+2POTS+WiFi+USB ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

GPON/EPON 4GE+2POTS+WiFi+USB ONU

2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU

Application

2FXS Dual Mode ONU Telephone Port Wifi VoIP Router GPON HGU ONU

Specifications

LED Mark Status Description
Power PWR On The device is powered up.
Off The device is powered down.
Registration PON On The device is registered to the GPON system.
Off Device is not registered to the GPON system.
Blink Device is registering.
Optical signal LOS Blink Device does not receive optical signals.
Off Device has received optical signals.
WAN WAN On WAN is effective.
Off WAN is ineffective.
Wireless WiFi On WiFi turned on.
Off Device is power off or WiFi turned off.
Blink WiFi turn on and with ongoing data transmission.
Pots

FXS1

FXS2

 On Device has registered to the soft-switch, but without ongoing data transmission.
Off Device is power off or not registered to the soft-switch.
Blink Phone hooks off or the port is with ongoing data transmission.
Ethernet

ETH1

iTV

ETH3

ETH4

 On Port is connected properly.
Off Port connection exception or not connected.
Blink Port is sending or/and receiving data.
Pair WPS On WPS client is connected. ( LED turn off after 5 minutes of successful connection)
Off Does not use WPS or WPS client is connected.( LED turn off after 5 minutes of successful connection)
Blink WPS client is connecting.
USB USB On USB device is connected, but without ongoing data transmission.
Off Device is power off or USB device is not connected.
Blink USB is with ongoing data transmission.
