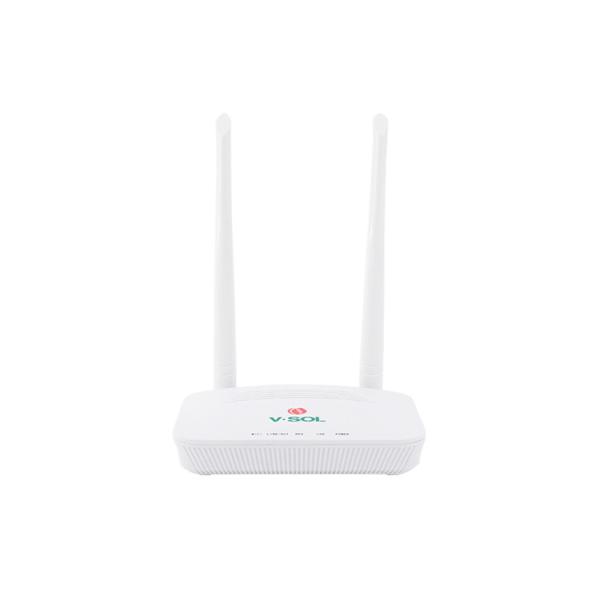

V2801RGW Dual Mode ONU 1 x 10 100 1000Mbps FTTH 1GE 1Port Wifi GPON ONT
V2801RGW Dual Mode ONU 1 x 10 100 1000Mbps FTTH 1GE 1Port Wifi GPON ONT
V2801RGW Dual Mode ONU 1 x 10 100 1000Mbps FTTH 1GE 1Port Wifi GPON ONT
V2801RGW Dual Mode ONU 1 x 10 100 1000Mbps FTTH 1GE 1Port Wifi GPON ONT
Specifications
Brand Name :
V-solution
Model Number :
V2801RGW
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
1000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product name :
1GE Port Epon Gpon + WiFi
Wavelength :
Tx1310nm,Rx 1490nm
Uplink :
1 GPON EPON
Downlink :
1x 10/100/1000Mbps
Power supply :
DC12V / 0.5A
Power consumption :
<=6W
Description

V2801RGW Dual Mode ONU FTTH ONU 1G+WIFI 1 Port GPON ONT With Wifi

Product Description

V2801RGW is realtek chipset Mini GEPON Routing ONU modem designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. IT suports NAT/firewall and the technology of 802.11n WiFi (2T2R) so on functions.It is based on the stable and mature GEPON technology, which has high performance/price ratio, and the technology of layer 3 Ethernet switch as well.It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to IEEE 802.3ah EPON standards.

Product specification
1G/EPON+1GE+WiFi
SDRAM Memory
64MB
LED
5, For Status of POWER,LOS,PON,LAN,WiFi
Power supply
DC 12V/0.5A
Net weight
0.15KG
Dimension
120mm×78mm×30mm(L×W×H)

Key Features

  • Firewall: DDOS, Filtering Based on ACL/MAC/URL
  • Routing or Bridging Mode
  • Detecting Rogue ONU
  • Flow & Storm Control , Loop Detection
  • Dual Mode( can access gpon/epon olts ).
  • Compatible with popular OLT(HW,ZTE...)
  • Industrial Design

Specifications

Technical items
Description
V2801RGW
Main chip
Realtek
Upstream PON interface 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps
Wavelength Tx 1310nm, Rx 1490nm
Optical interface SC connector
Downstream LAN interface 1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
WLAN Compliant with IEEE802.11b/g/n, 2R2T, 300Mbps,
Indicators 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply +12V, external AC-DC power adaptor
Power switch 1
Power consumption ≤6W
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)
Dimension 120mm*78mm*28mm(length*width*height)
Net weight 0.25Kg

Application

V2801RGW Dual Mode ONU 1 x 10 100 1000Mbps FTTH 1GE 1Port Wifi GPON ONT
