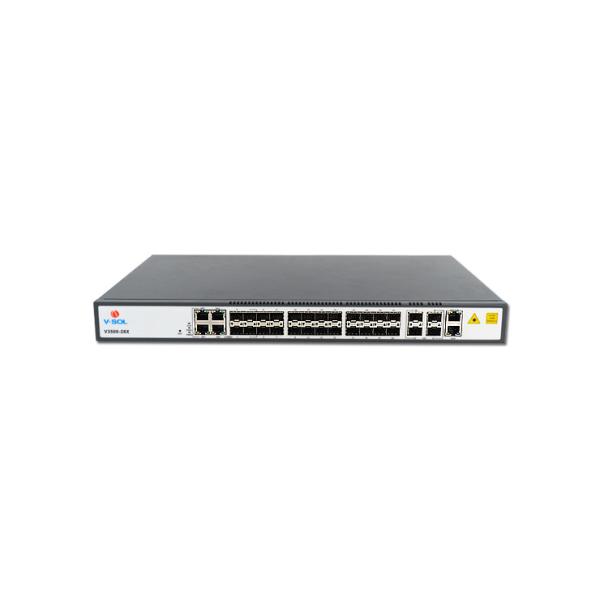

VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps
VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps
VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps
VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps
Specifications
Brand Name :
V-solution
Model Number :
V3500-28X
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Product :
28 Port L3 Switch
Type :
Enterprise Switch, Multimode
1G User Port (Combo) :
4 RJ45, 1Gbps
Power Supply :
Dual power backup
Dimension :
442*285*43.6mm
Certification :
CE RoHS FCC
Description

VSOL Ethernet Network Switch 28 Ports Layer 3 Switch Dual Power Supply

Product Description

V3500-28X provides 4 Gigabit ports(Combo) and 24 SFP user ports and 4 SFP and 4 SFP+ uplink ports, which can meet the requirements of Gigabit access or convergence network.

The V3500-28X switch provides flexible full-Gigabit access and 10 Gigabit uplink ports, support multiple Layer 3 routing protocols, and have higher performance and richer service processing capabilities. Based on the high-performance L2/L3 wire-speed switching service, it further integrates various network services such as IPv6 and network security, and combines various high-reliability technologies such as uninterrupted upgrade, non-stop forwarding, and redundancy protection to ensure the network‘s long-term uninterrupted communication capabilities.

High Reliability & Safety

  • Dual power backup
  • Support Static/LACP link aggregation
  • Support L2/L3/L4-based ACL flow identification and filtering security mechanism
  • Support port isolation
  • Supports SYN Flood of TCP attacks and UDP Flood attacks
  • Support DHCP Snooping,DHCP Option 82
  • Support command line hierarchical protection

Support Layer3 Routing Protocols

Dynamic routing table reduces maintenance workload, easy for network extension

VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps

stable and Secure Applications
Rest Assured to Use

The managed switch V3500-28X with 24 GE ports is widely applied in the Internet, video surveillance,
security protection and other circumstances in schools, hotels, cooperate park and commercial buildings.
The stable high-speed connection and built-in firewall promise safe online.

VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps

Specifications

Management Function

  • Fan Group Control
  • Port Status monitoring and configuration management
  • User management
  • Alarm management

Multicast

  • Support IGMP v1/v2
  • Support IGMP Snooping
  • Support IGMP Fast Leave
  • Support multicast group quantitative limitation
  • Support multicast Traffic cross-VLAN replication

Rich Business Functions

  • Supports L3 of RIP,OSPF,IPv6 to meet the application requirements of voice, video, and data services

LED ON Blink OFF
PWR (green) The device is powered up — The device is powered down
SYS (green)

Device is starting

 Device is running normal Device is running abnormal
SFP/SFP+(green) The device is connected to the port The device is ongoing data transmission The device is not connected to the port

Ethernet

(green--ACT)

 — Port is sending or/and receiving data —

Ethernet

(yellow--Link)

 The device is connected to the port — The device is not connected to the port

Application

VSOL 28 Port L3 Gigabit Network Switch Multimode 1000 Mbps
