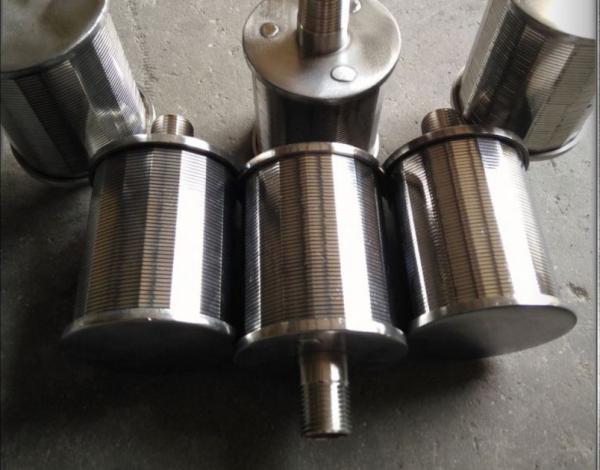

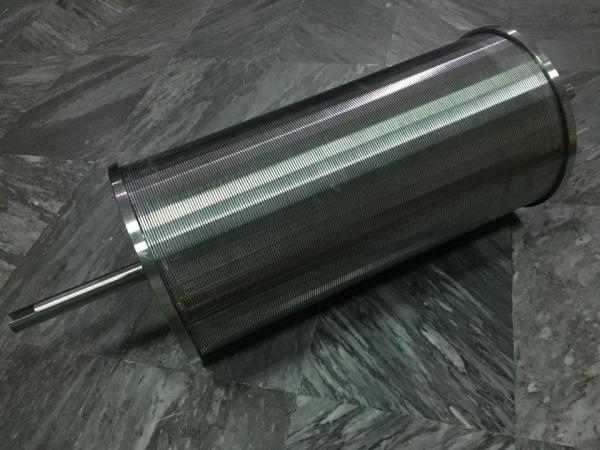

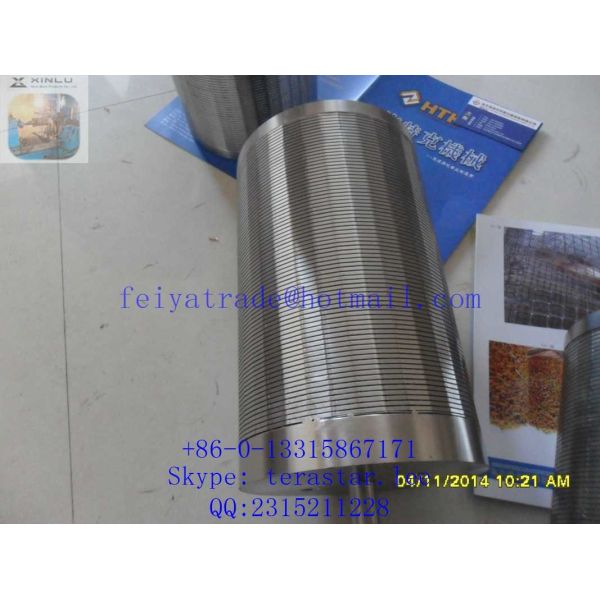

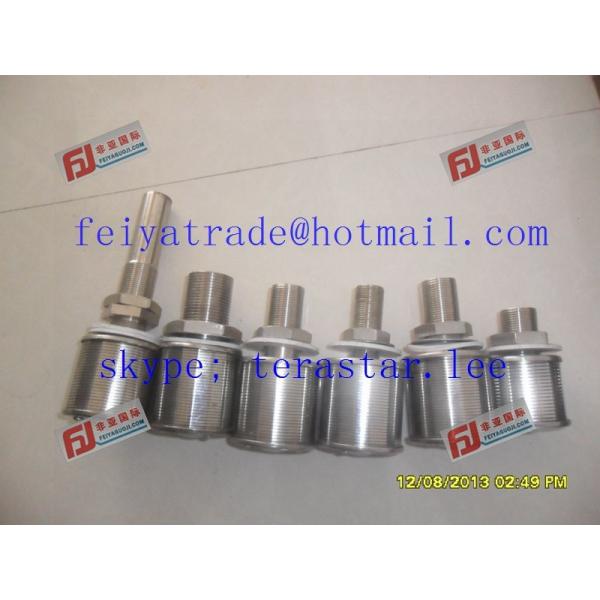

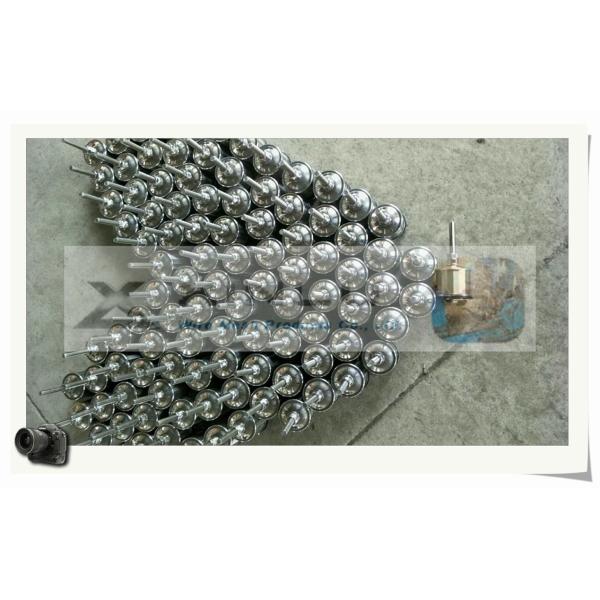

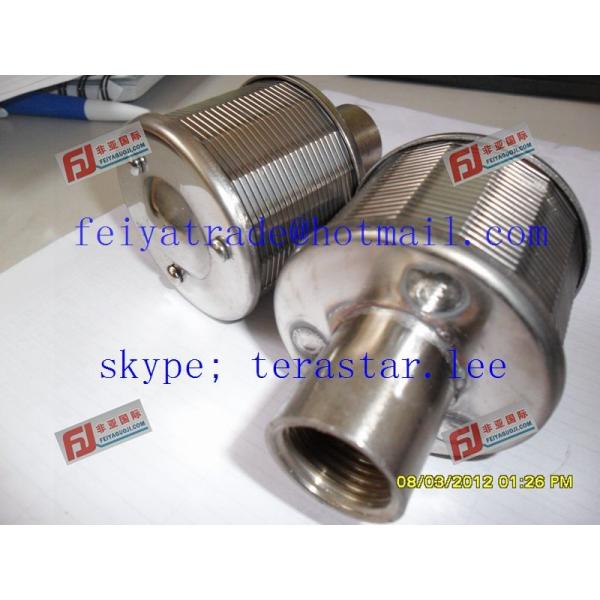

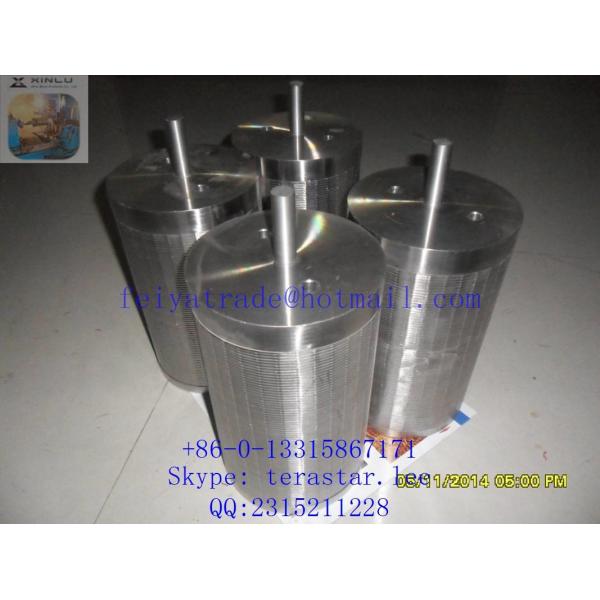

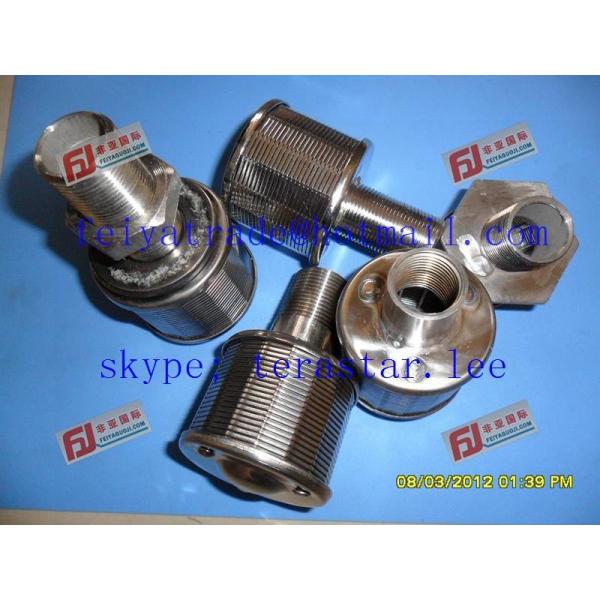

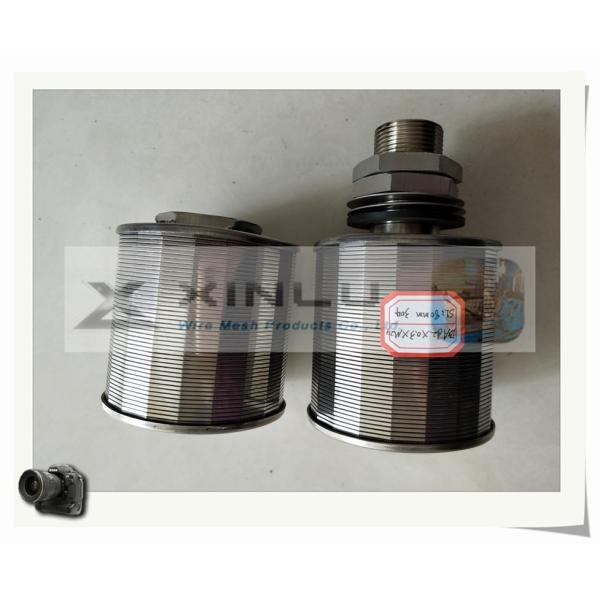

DN45-108 stainless steel wedge wire filter nozzle / johnson screen nozzle / water & gas strainer nozzle for power plant

Specifications

Brand Name :

FY-XL

Model Number :

FY-XL-15

Certification :

CCIC, ISO

Place of Origin :

China

MOQ :

200pcs

Price :

9.2$/spcs

Payment Terms :

T/T

Supply Ability :

350pcs/day

Delivery Time :

3days

Packaging Details :

wooden box, pallet, container

material :

ss316L

slot :

0.2-0.25mm

threaded :

m24, m32, 3/4'npt, 3/4'bsp, 1-1/4'npt

Profile wire :

1.5X2mm, #63 (1.5*2.5mm), #93(2.3*3.5mm)

Support wire :

1.8X2.5mm, #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.

Flow type :

FOTI, FITO

Description

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd TRAPEZOID WIRE NOZZLES

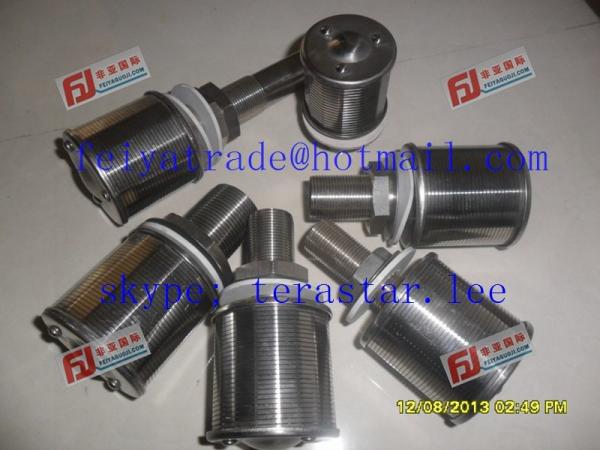

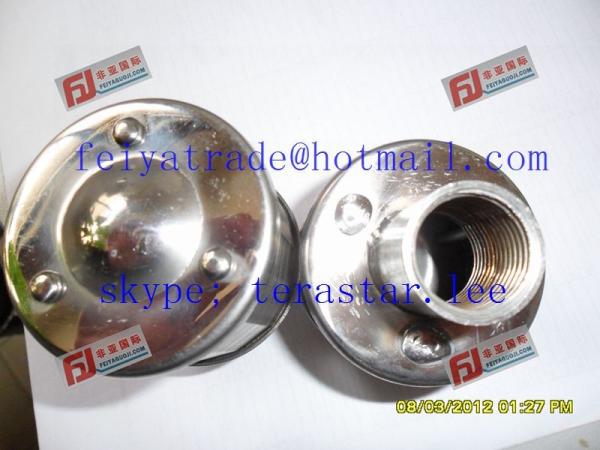

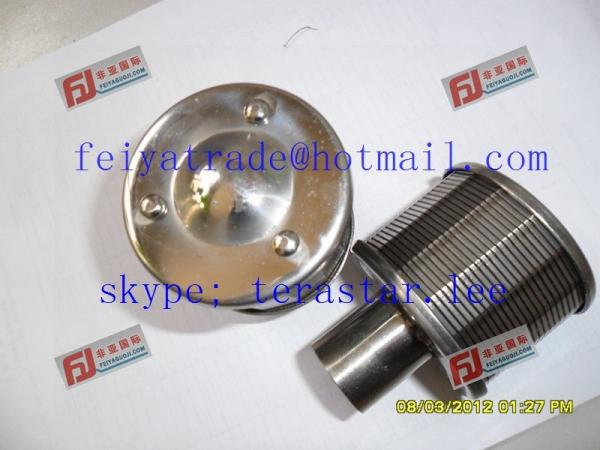

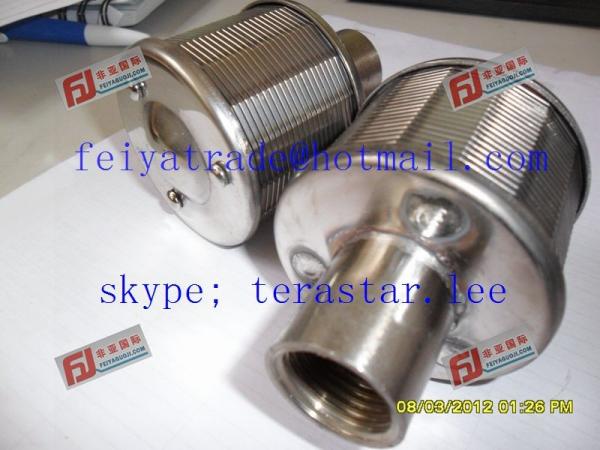

Nozzles are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That's because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens manufactures nozzles using a welded trapezoidal (wedge) wire screen variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.

If needed, Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Screens can also custom manufacture nozzles to your exact specifications, including material, fitting type and sizes.

DN45-108 stainless steel wedge wire filter nozzle / johnson screen nozzle / water & gas strainer nozzle for power plant

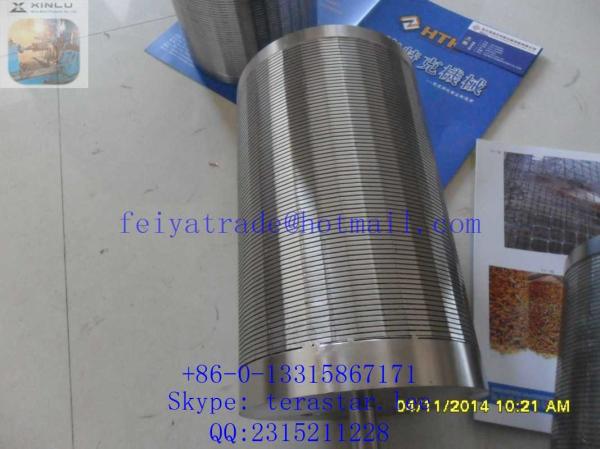

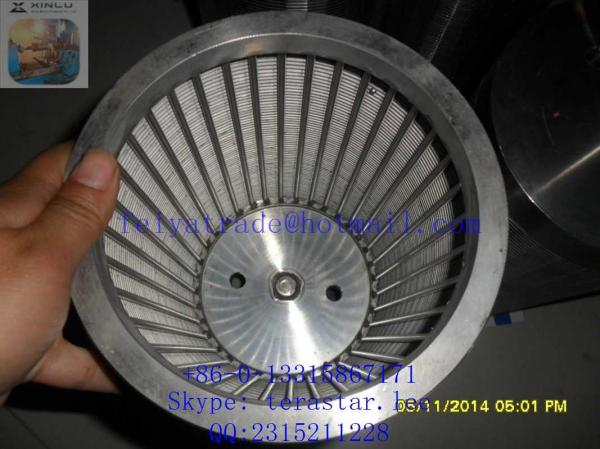

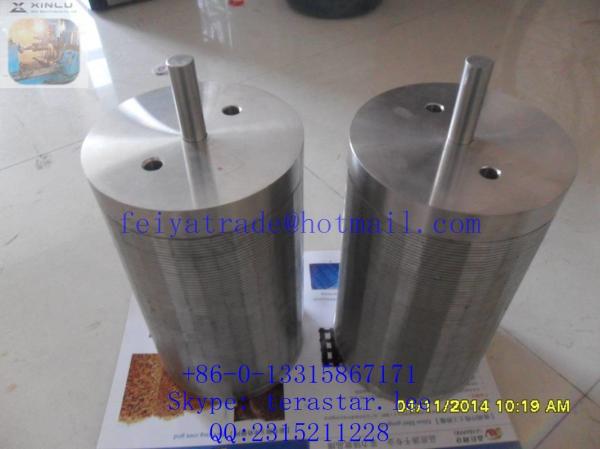

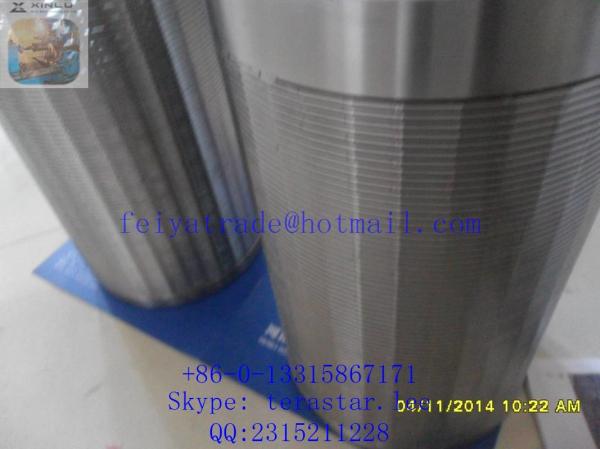

Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.

Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),

2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment

3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.

4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating

Data reference table:

PROFILE WIRE
WIDTH(mm)	1.50	1.50	2.30	2.30	1.80	3.00	3.70	3.30
HEIGHT(mm)	2.20	2.50	2.70	3.60	4.30	4.70	5.60	6.30

SUPPORT ROD						ROUND
WIDTH(mm)	2.30	2.30	3.00	3.70	3.30	Ø2.5--Ø5mm
HEIGHT(mm)	2.70	3.60	4.70	5.60	6.30	----

Any inquiry please don't hesitate to contact us !(whatsApp+86-13315867171)

Hope we can work together soon.

Contact:feiyatrade@hotmail.com

Skype: terastar.lee

---------------------------------------------------------------------------------------------------------------

Our factory Xinlu Wire Mesh product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are: stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
