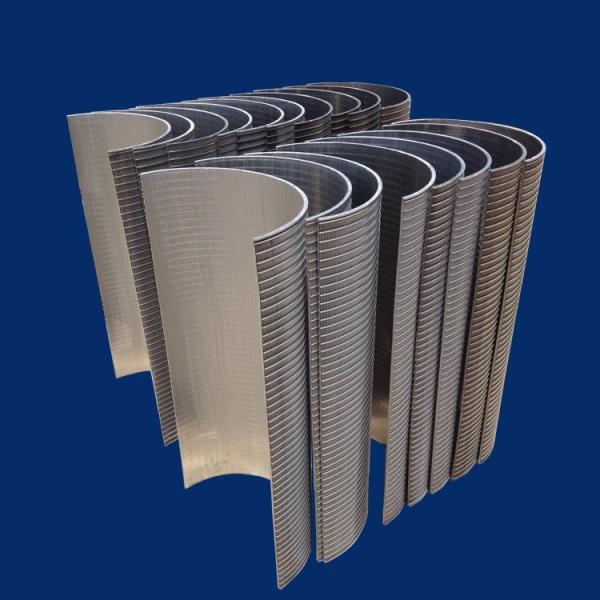

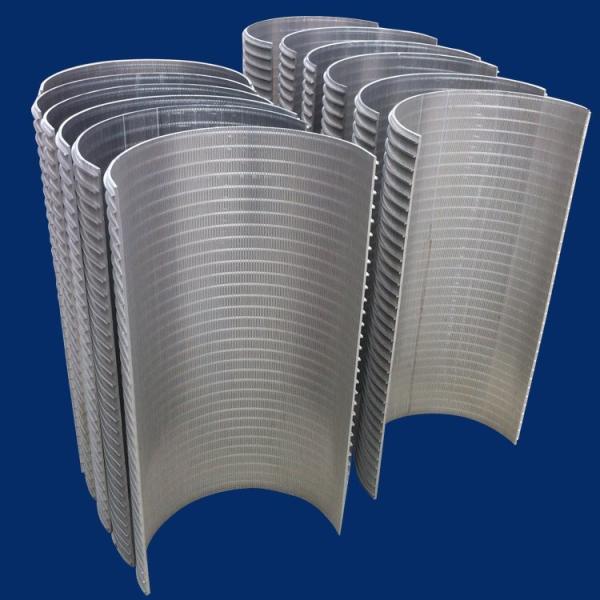

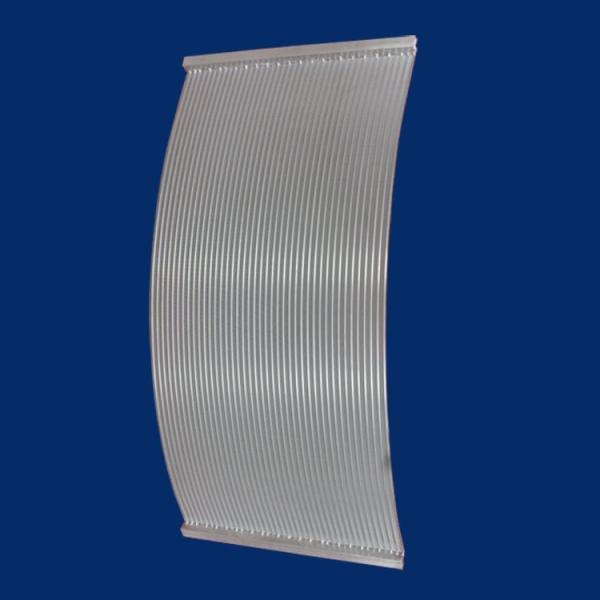

Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd TURBO-SHEAR COANDA SCREENS

FEATURES AND ADVANTAGES
· No moving parts
· Simple and inexpensive to install
· No electricity required
· High capacity -- 1½ cfs per foot of weir length
· Profile wire stainless steel
· Capable of removing solids as small as 0.5 mm

APPLICATIONS
· Hydroelectric turbine intakes, Silt Screening
· Irrigation Diversions
· Municipal and industrial diversions
· Wildlife refuges
· Fish Hatcheries
· Fish barriers
· Screening wherever fish protection and liquid/solid separation are required

The Feiya International Group Ltd Anping Branch Factory---Xinlu Wire Mesh Products Co.,ltd Turbo-shear Screen utilizes a combination of shear and Coanda Effect. As the water flows across each horizontal wire, a portion is sheared or "sliced" at each slot to be passed to the useful purpose of the diversion. Solids larger than the slot are flushed past the screen. The standard slot opening is 1.0 mm. Screens with larger or smaller openings can be manufactured on special order.

Liquid/solids separation is further enhanced by the Coanda Effect; that is , the phenomenon whereby fluids tend to follow a solid surface. A specially designed acceleration plate provides for both an even distribution of flow across the screen and an increase in velocity of the fluid for more effective liquid/solid separation.

Please contact us for more information.

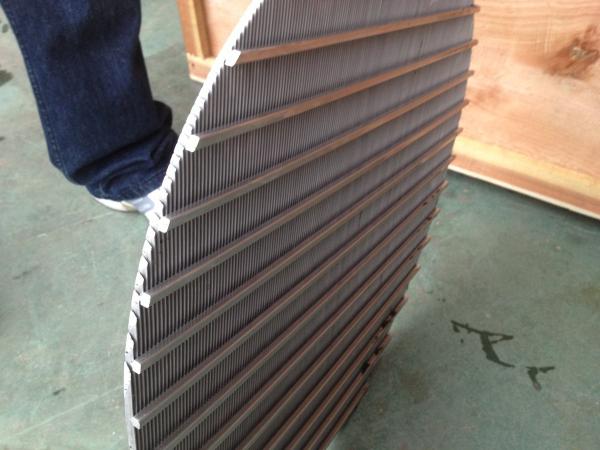

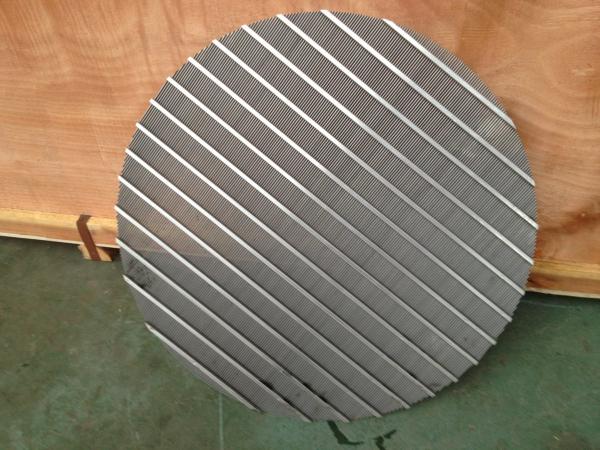

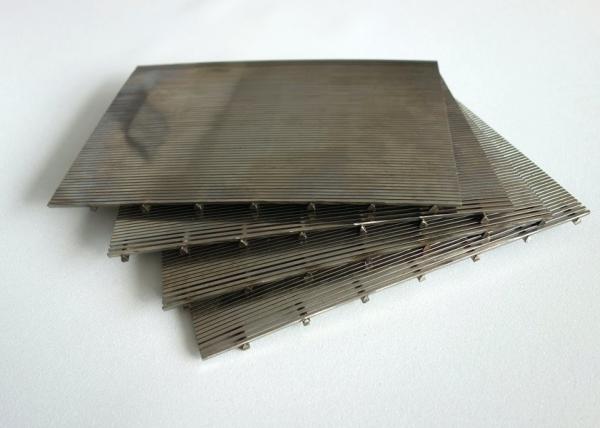

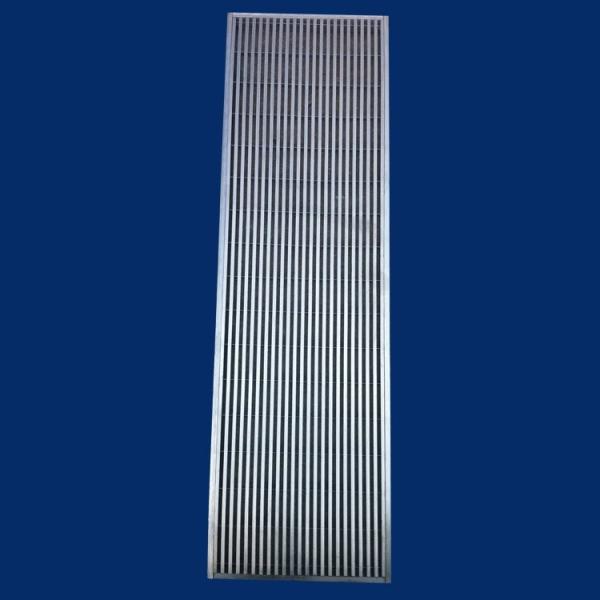

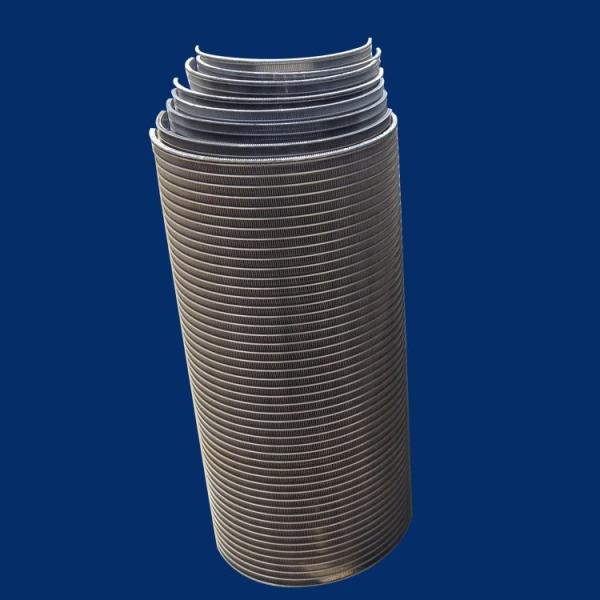

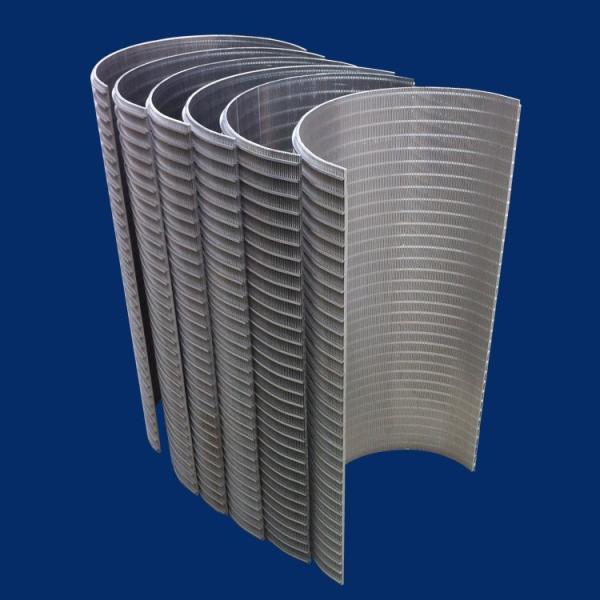

Made of V-shape profile wire and longitudinal support rod, each intersecting point of the wires is fusion welded, so it has sturdy constriction and good mechanical property.
The V-shape section can avoid blockage and make sure of the unimpeded water. And the continuous slot have flexiable open area, that can reduce the speed of the water entering to avoid the sand entering the screen under the pressure, so it can filter sand better.
And also the slot size can changed according to different requirment.
It is widely used for water, oil, and gas wells, and is the dominant water well screen used in the water well industry.

Specification:
1.Material: stainless steel(304, 304L, 316, 316L etc.)
low carbon, low carbon galvanized steel(LCG),

2.Diameter: Normal size is 89mm 114mm, 168mm 219mm 245mm 273mm 325mm 406mm 426mm and etc.
More size can be made according to customer's requirment

3.Slot: 0.1mm, 0.2mm, 0.5mm, 0.75mm, 1mm, 1.5mm and etc.
Also can be made as customer's requirement.

4. Length: 1-6m (2.9 or 5.8m is suitable for container loading)

Advantage:
High flow rates
Non-clogging slot
Reduction cost in operating

Data reference table:
